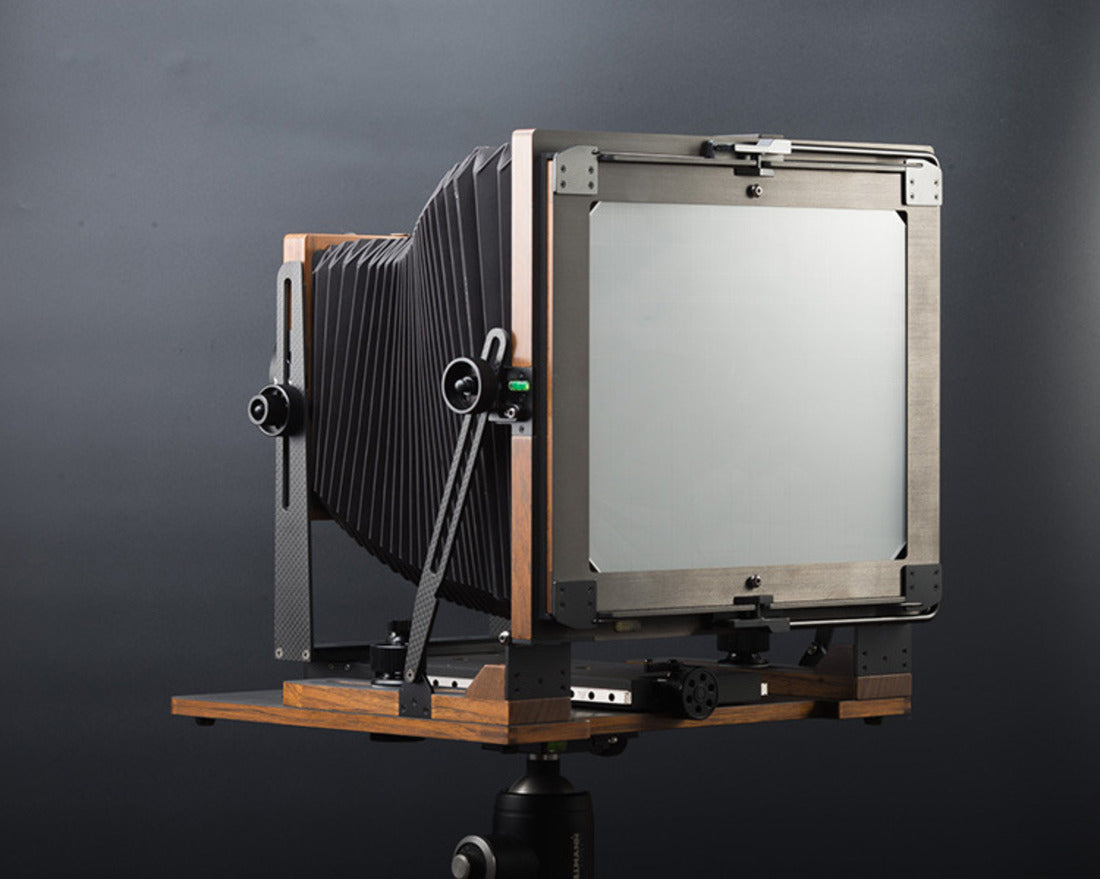

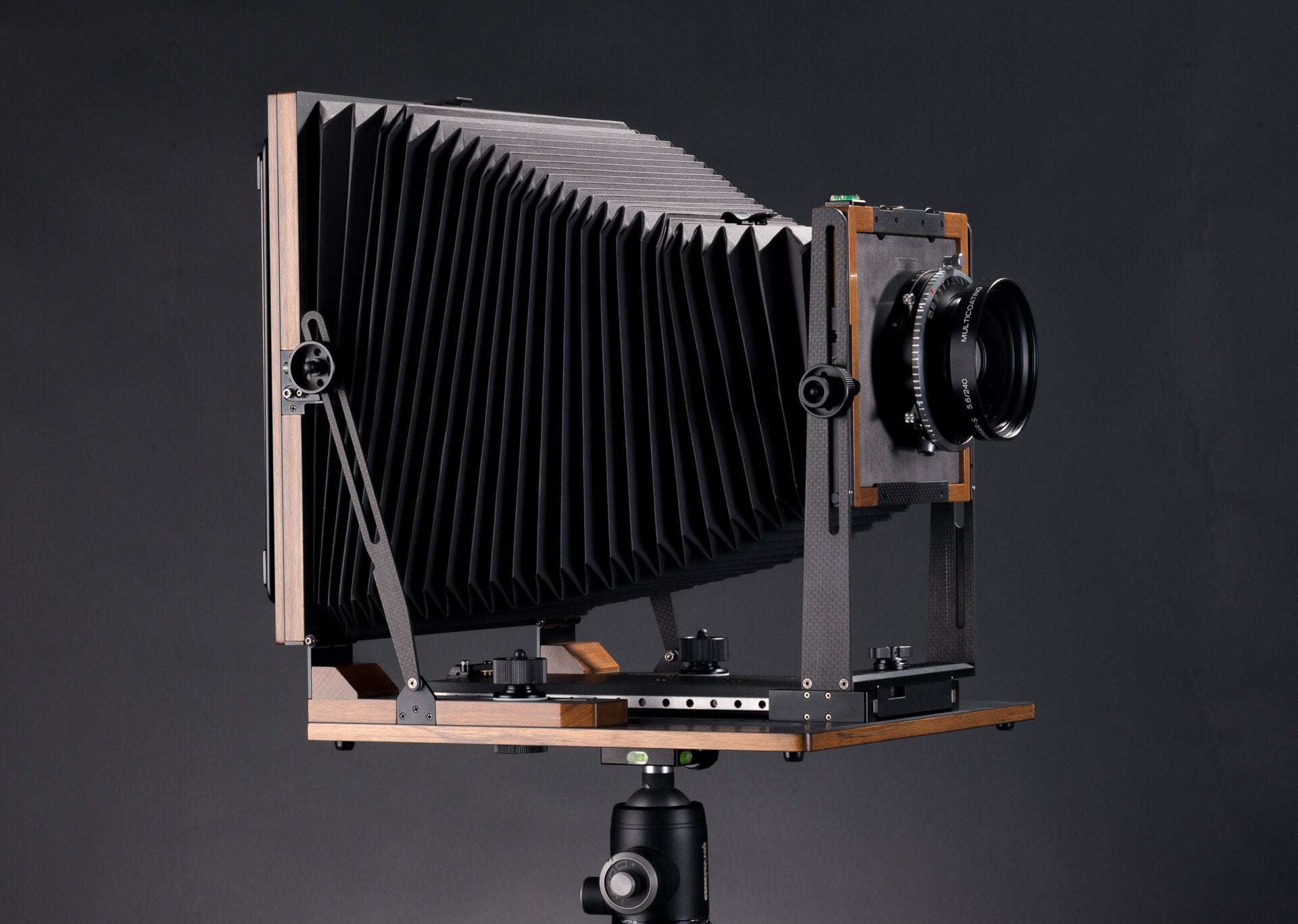

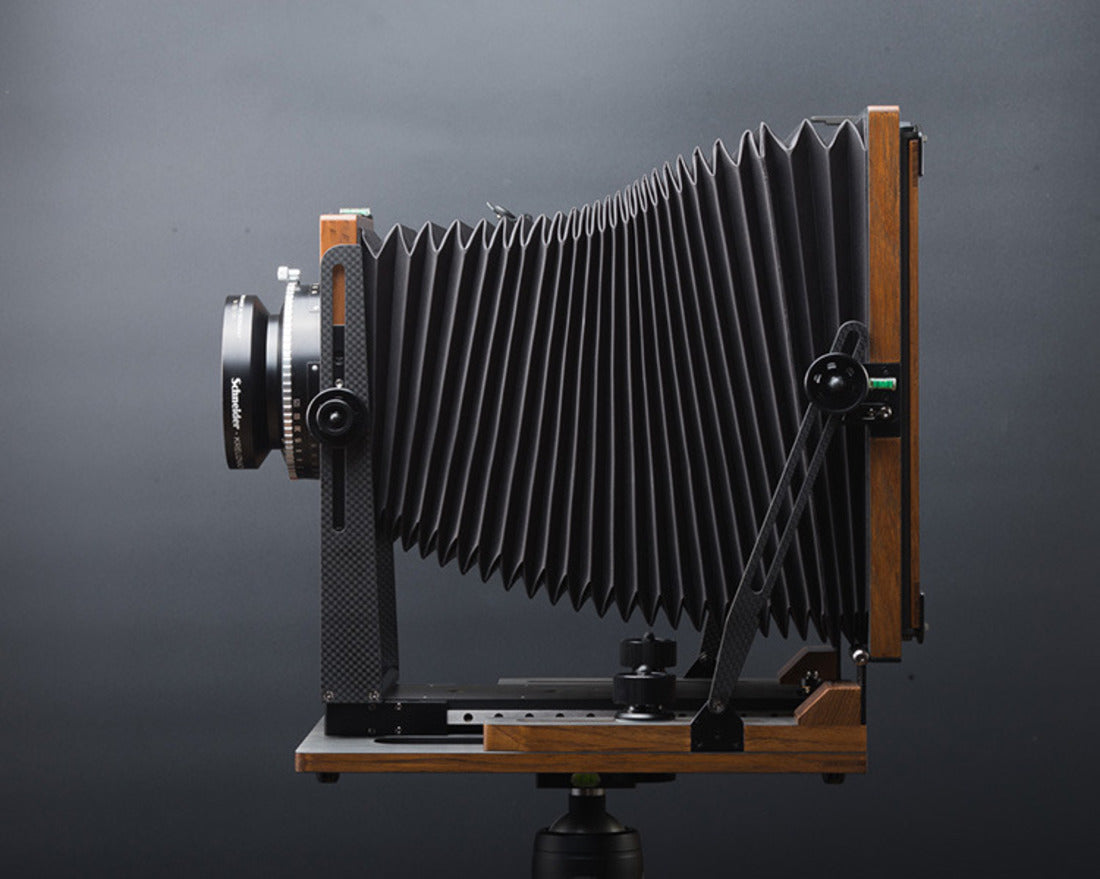

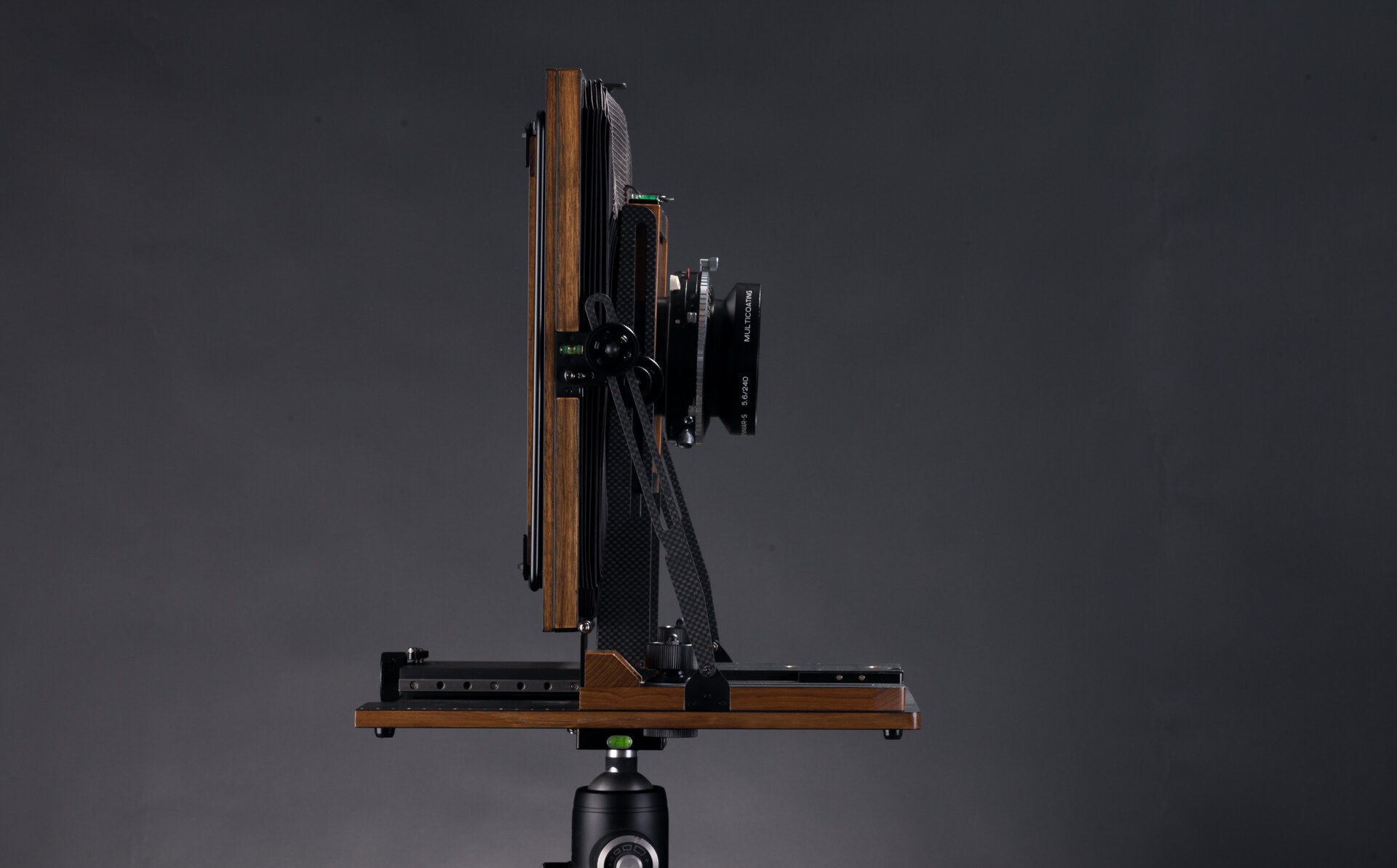

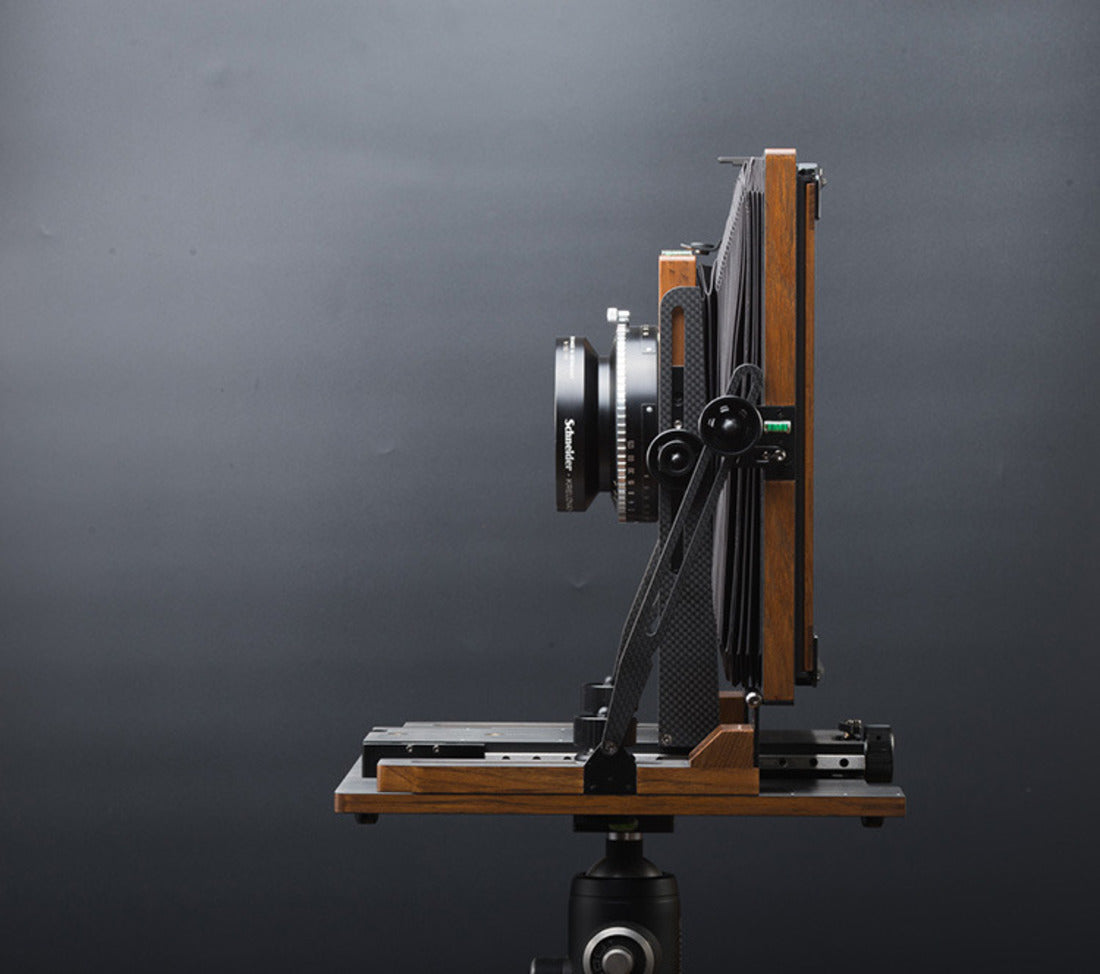

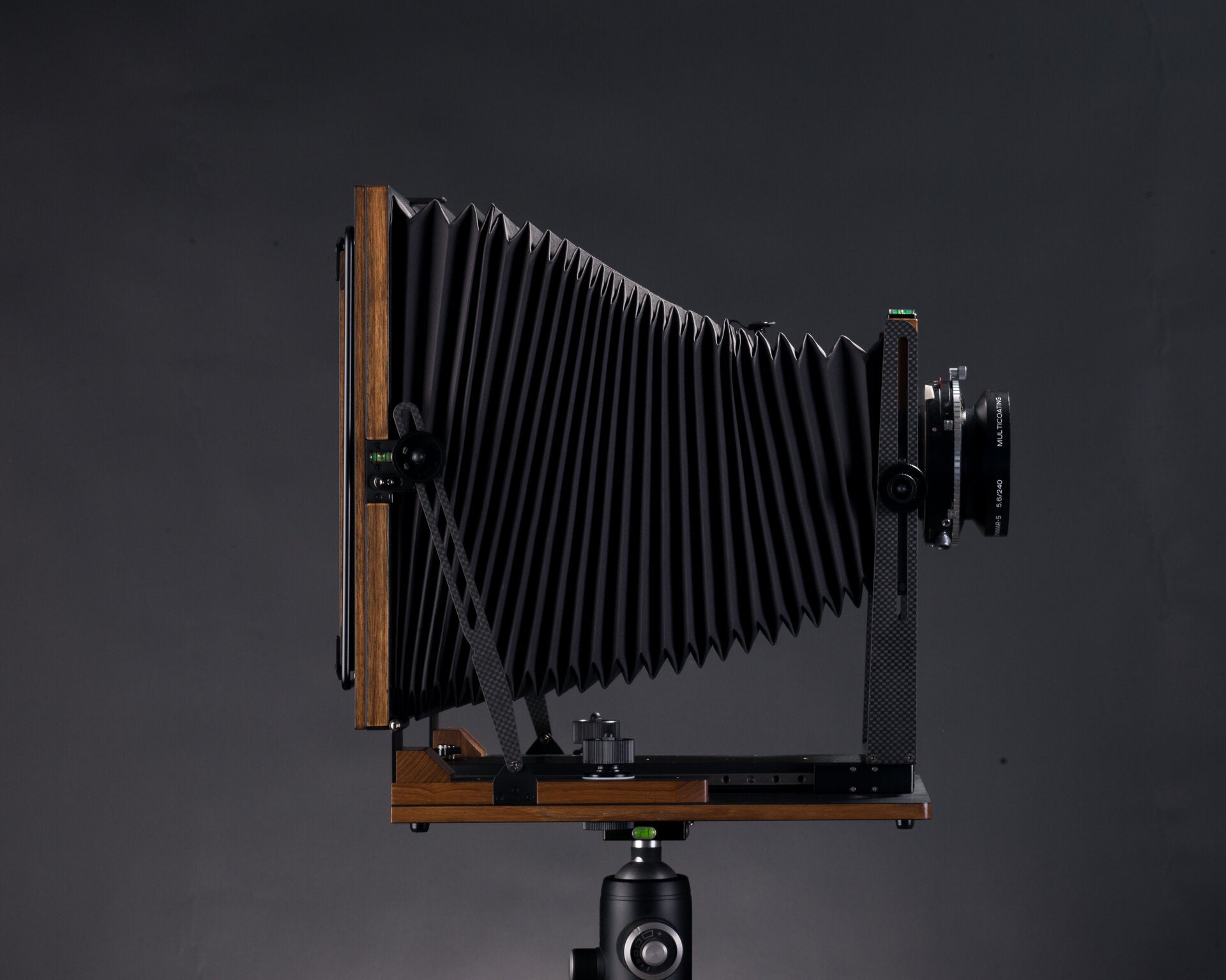

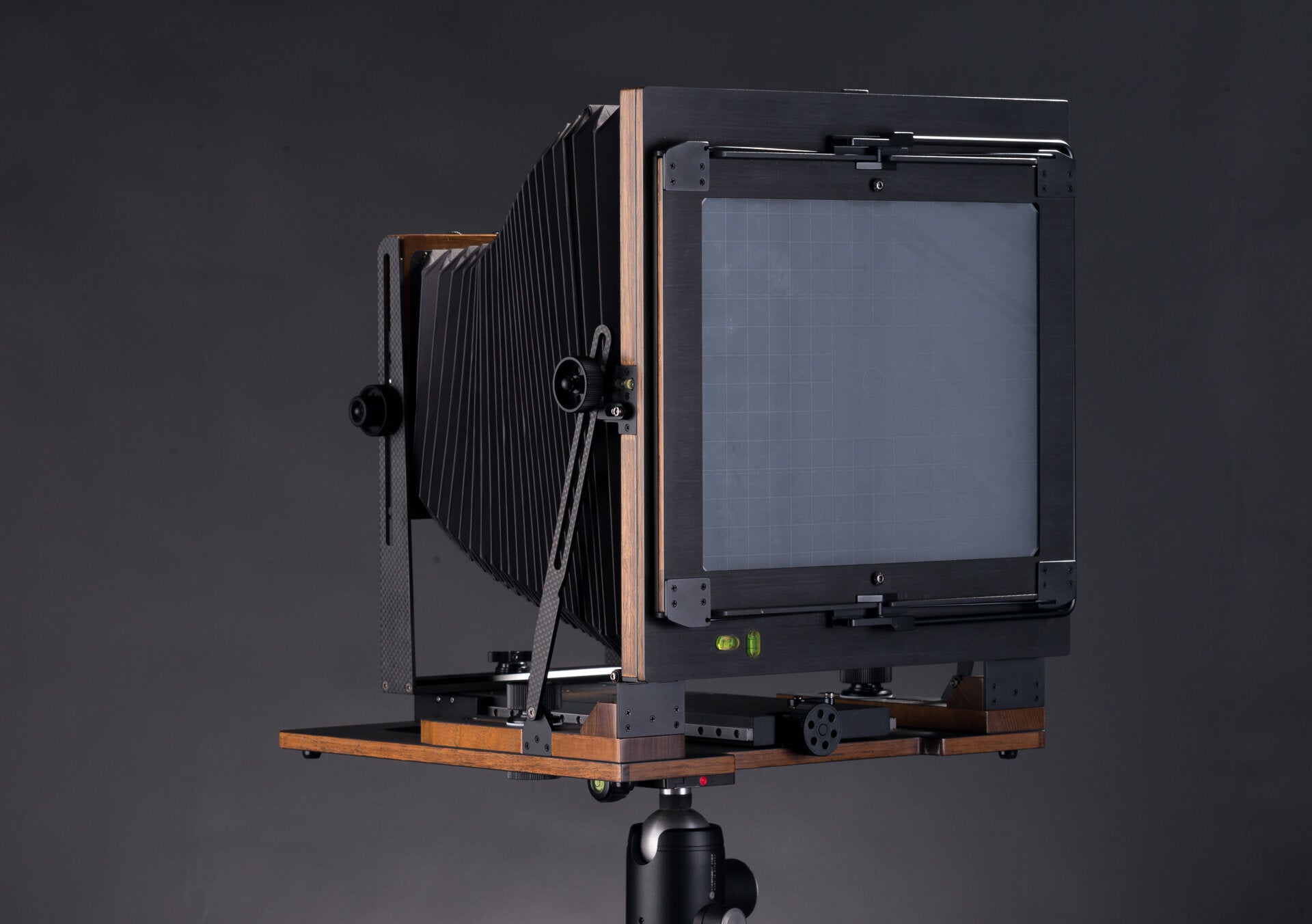

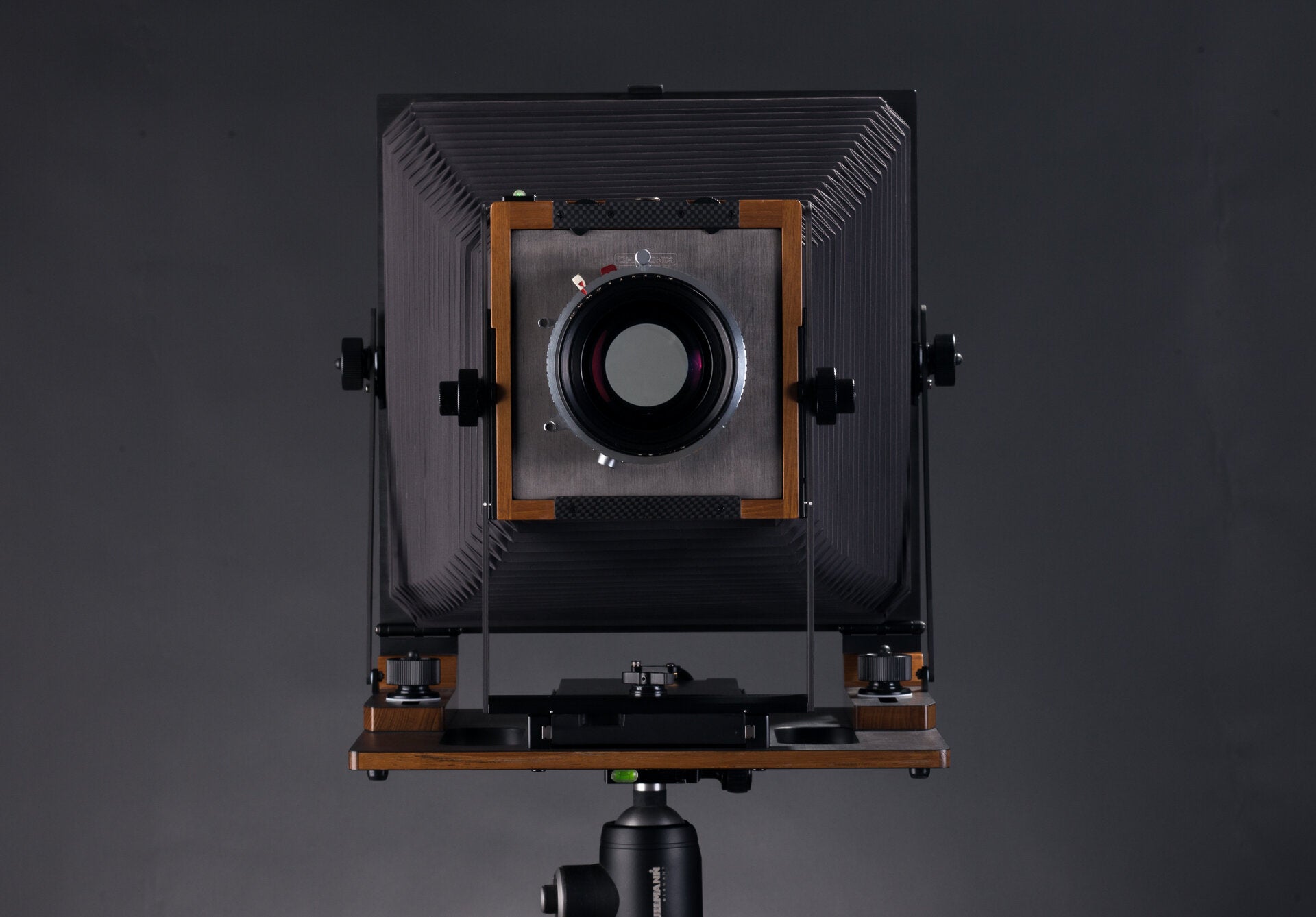

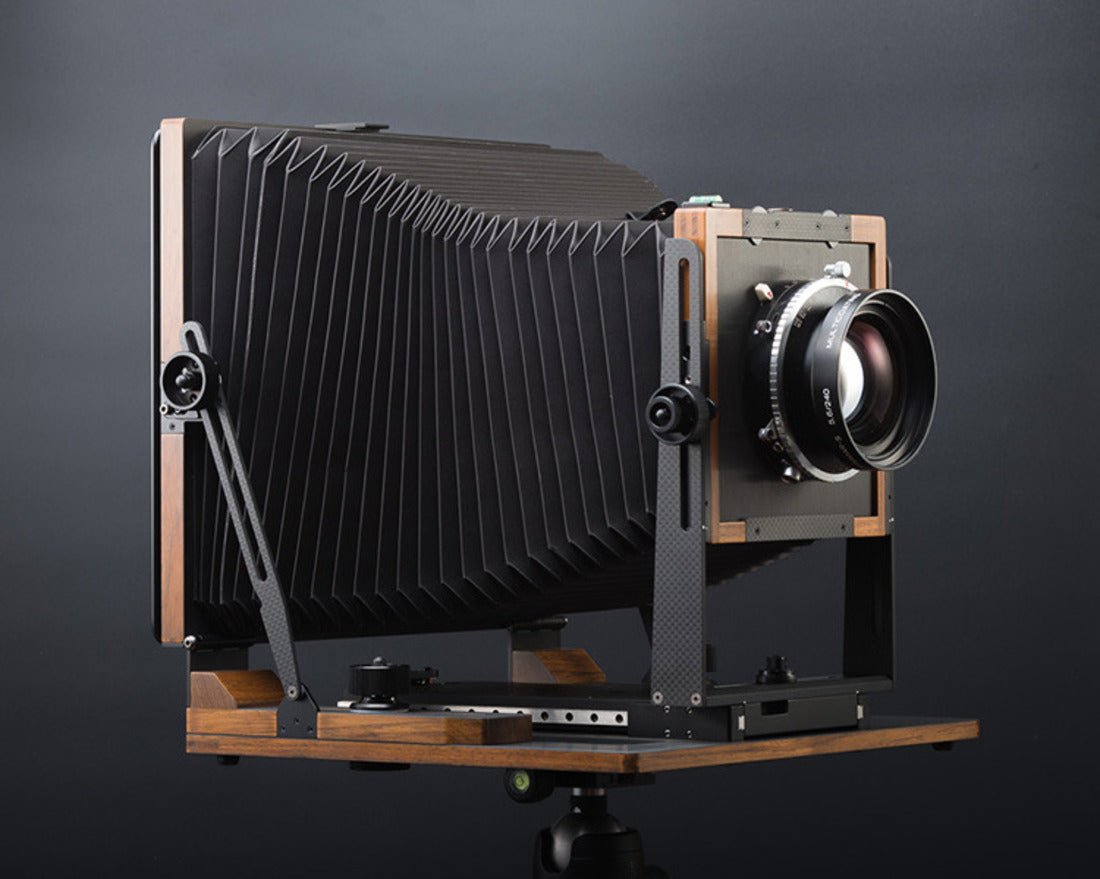

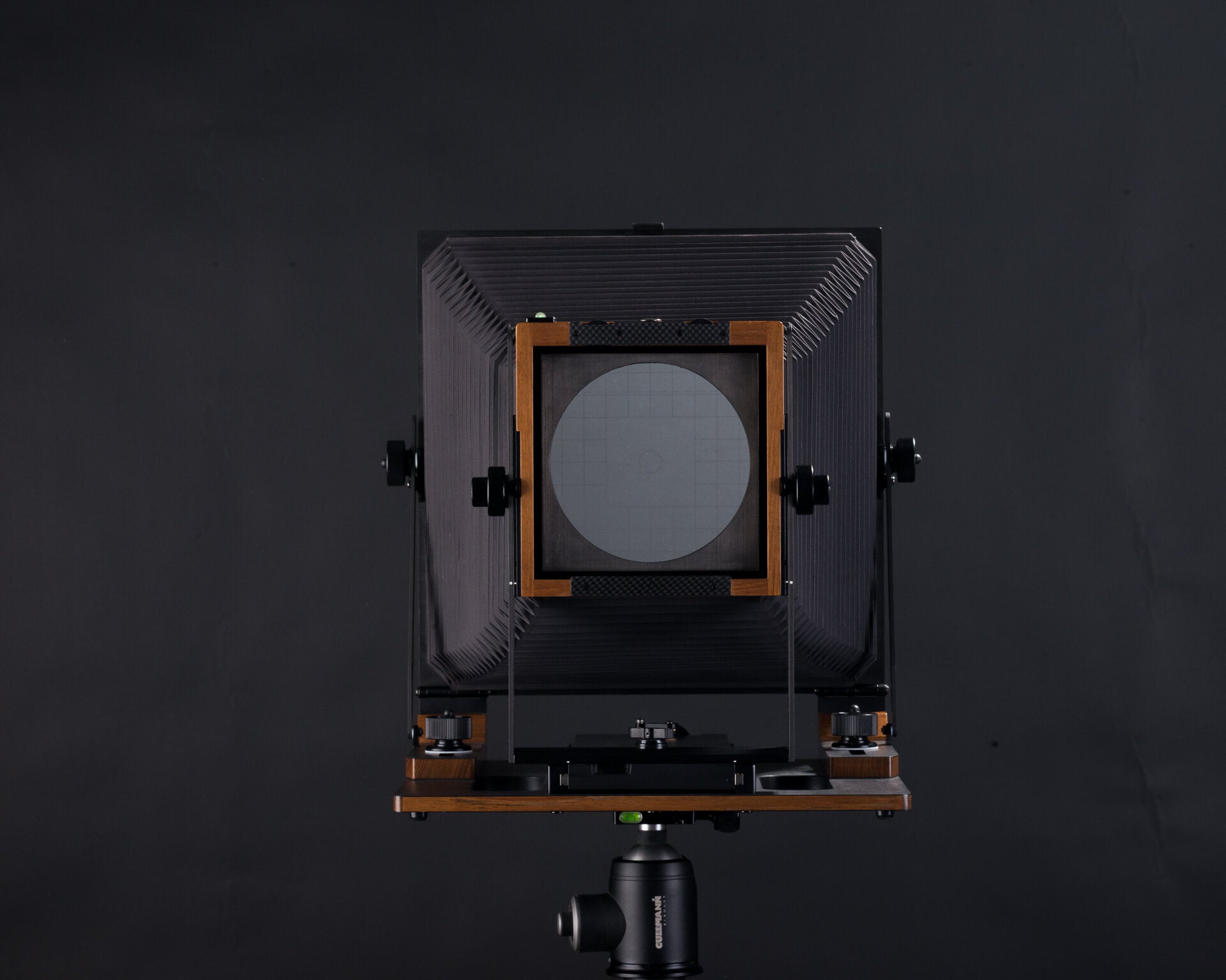

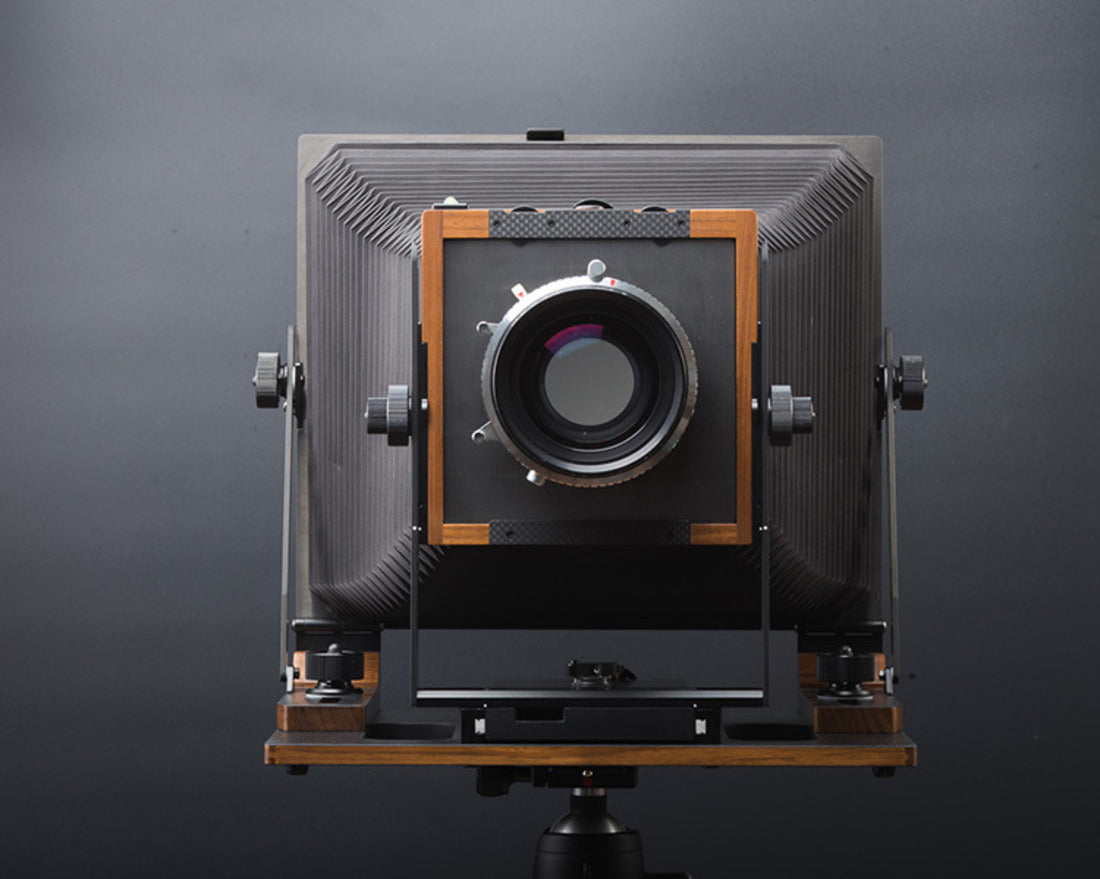

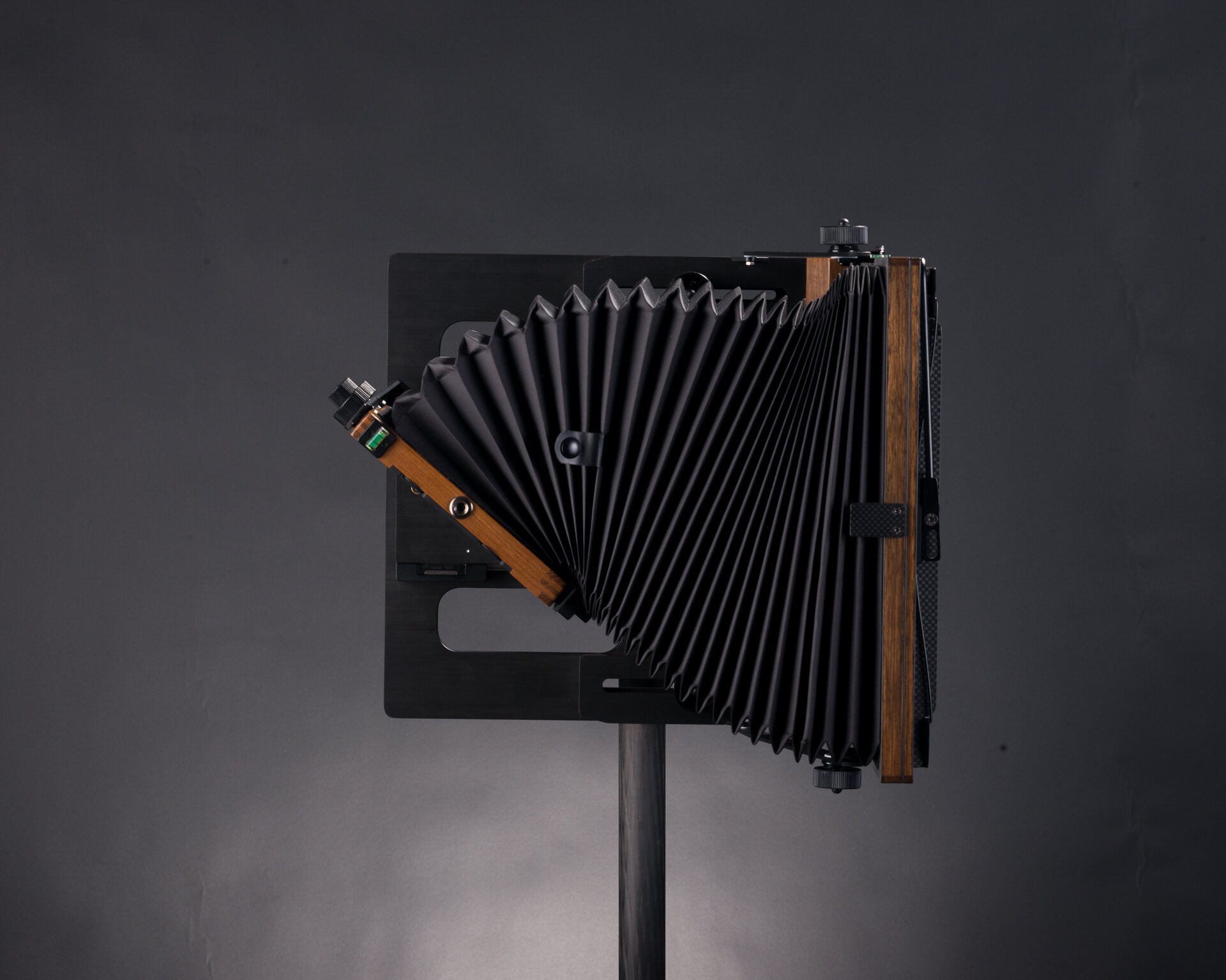

CHAMONIX C810AX ALPINIST X 8x10" view camera
This is the ultimate 810 camera. Sleek, ultra light weight and extremely rigid. If you are a photographer who uses 8x10 cameras, this is the camera you take to travel around the world.
SPECIFICATIONS:
-

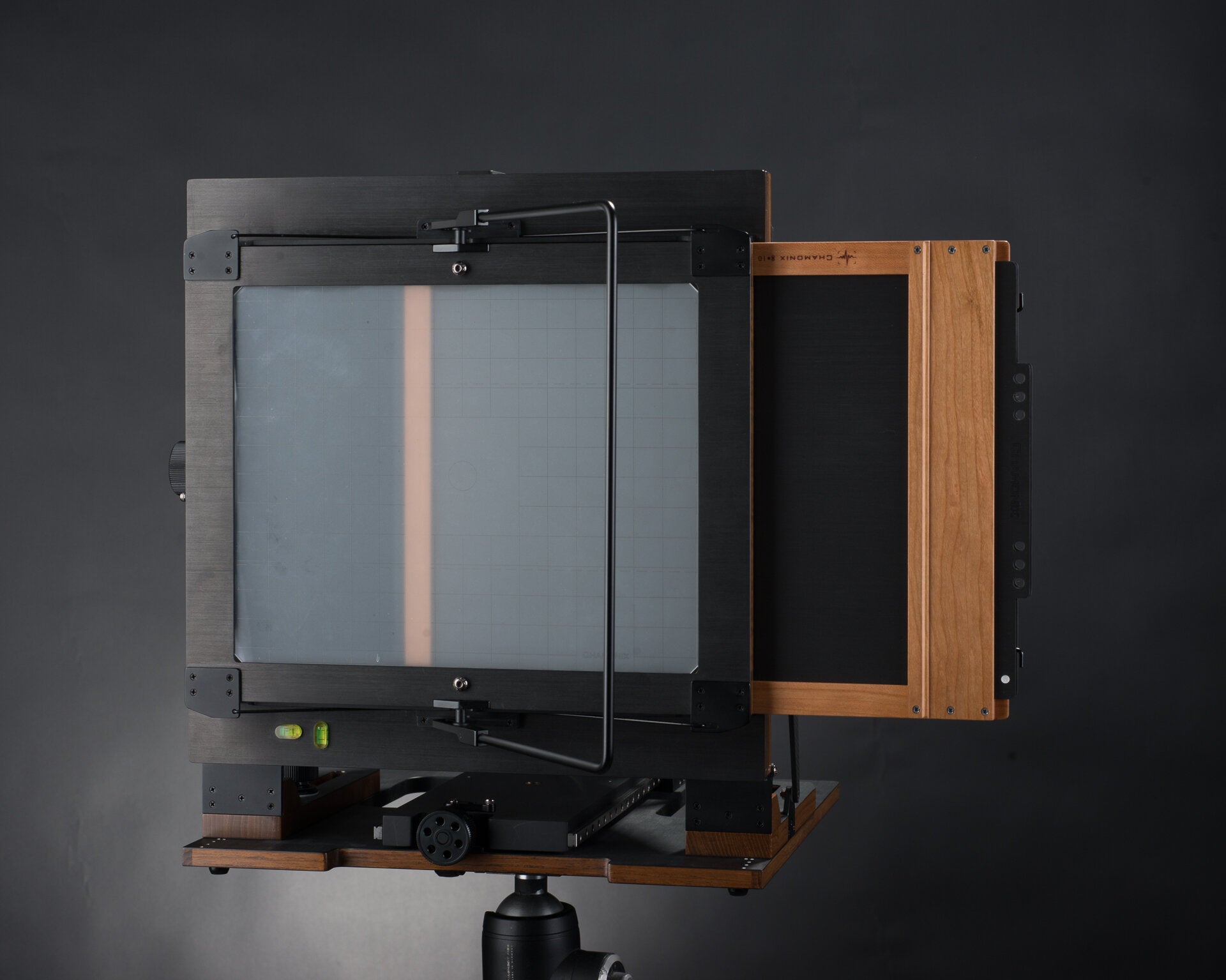

Convertible camera back: horizontal / vertical

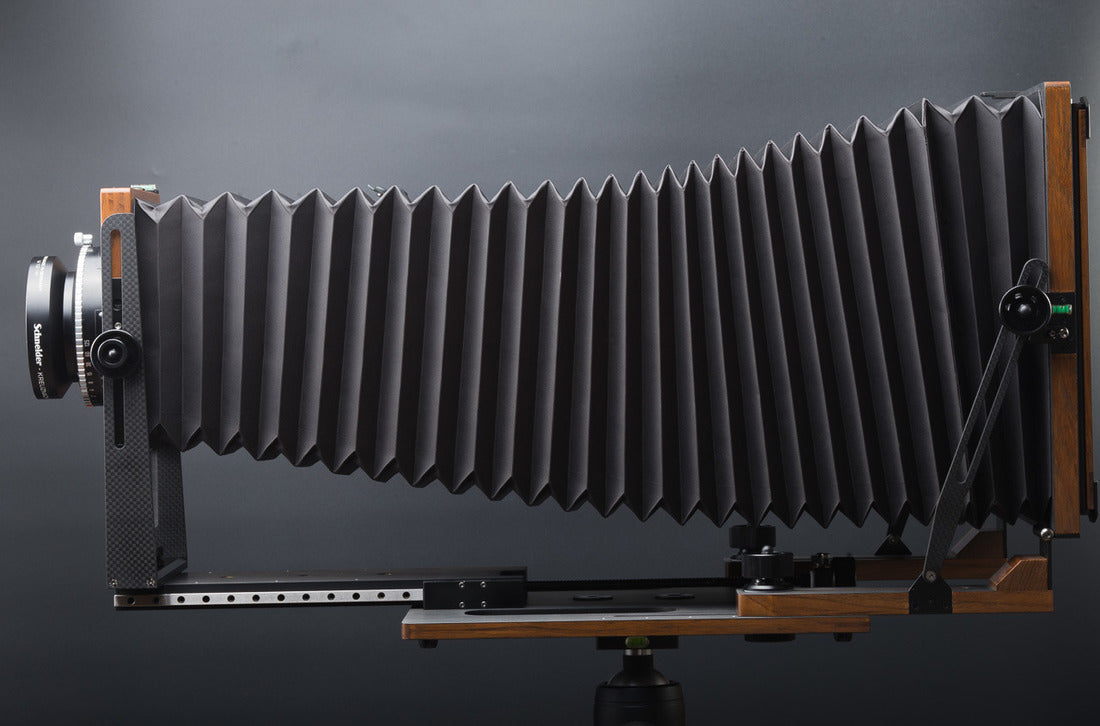

- Maximum extension: 680 mm
- Minimum extension: 65 mm
- Weight: 2950 g
- Max. Movements:
-
Front standard: (compatible with lens boards of the Sinar type)
- SHIFT - vertical - up: 87 mm
- SHIFT - vertical - down: 75 mm
- SHIFT - horizontal: +/- 50 mm
- TILT: +/- 30°

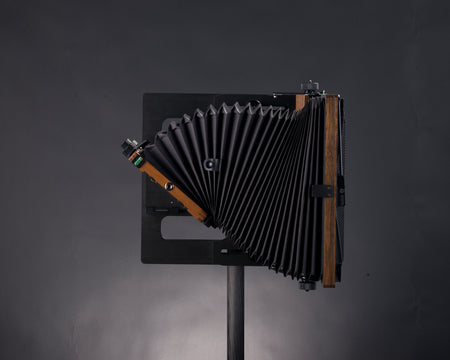

- SWING: +/- 45°
- Rear standard:
- SHIFT - vertical - up: 0 mm
- SHIFT - vertical - down: 0 mm
- SHIFT - horizontal: +/- 0 mm
- TILT: - 30°
- SWING: +/- 10° (asymmetrical)

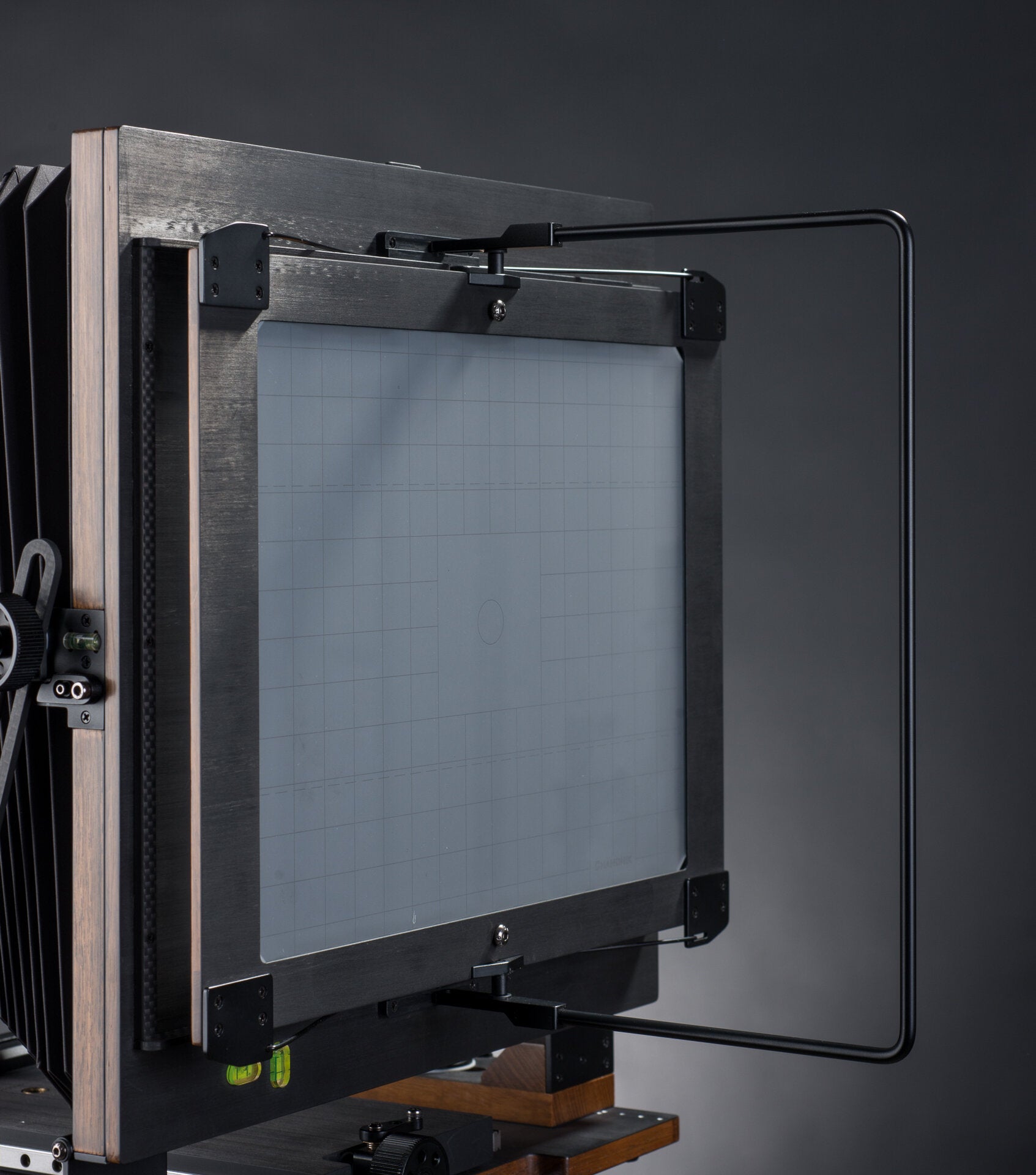

- Incl. universal bellows, protection plate for focusing screen (Carbon), Bag
-
Optional Accessories: Lens boards, film holder - not included.
