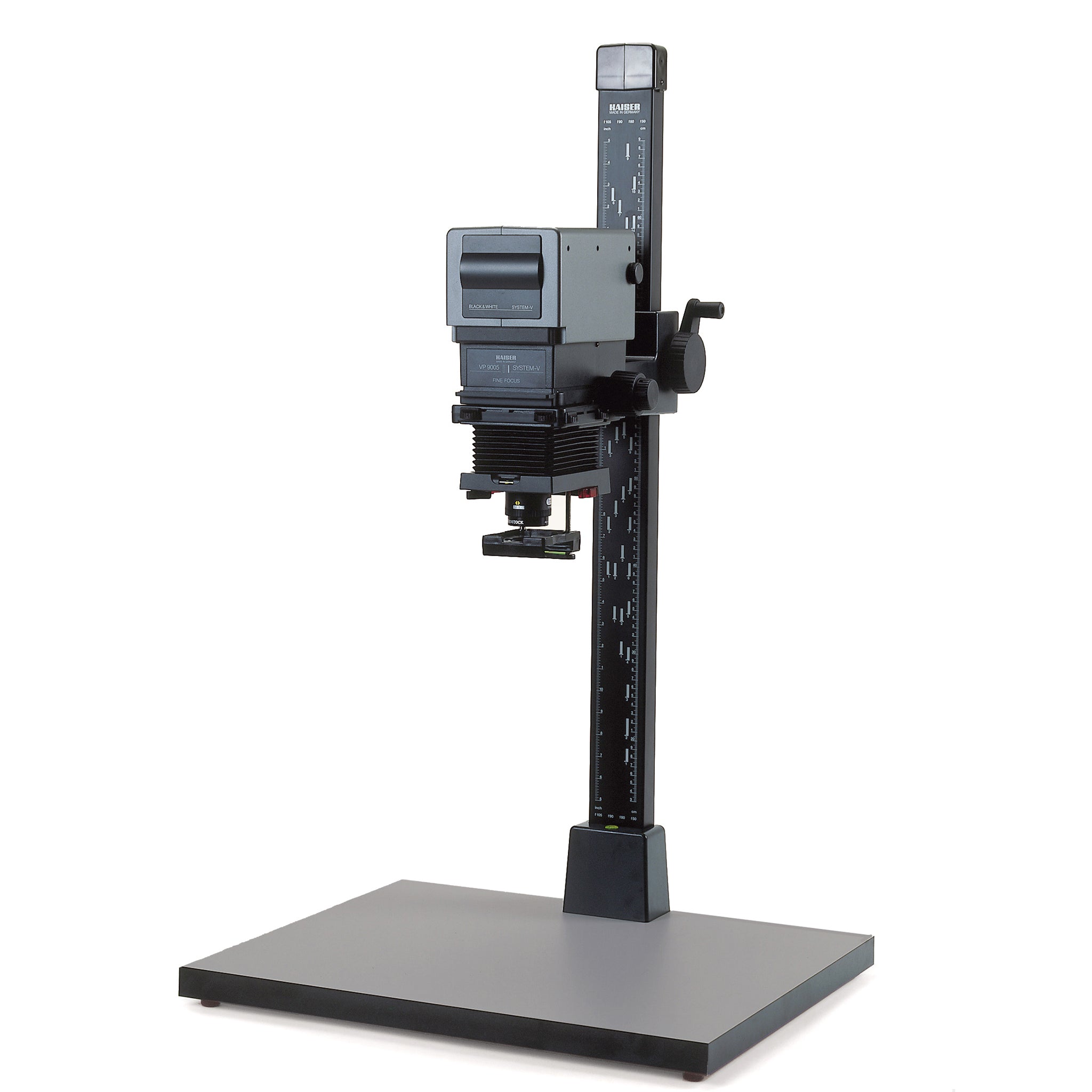

Kaiser Fototechnik 4540 B & W Enlarger VP 9005 SYSTEM-V

B & W enlarger for all film formats up to 6 x 9 cm (2.4 x 3.5 in.) and lenses up to 105 mm focal length.

Compound negative carrier fitted with Anti-Newton glass on top and flat glass on bottom, additional format mask 6 x 7 cm.

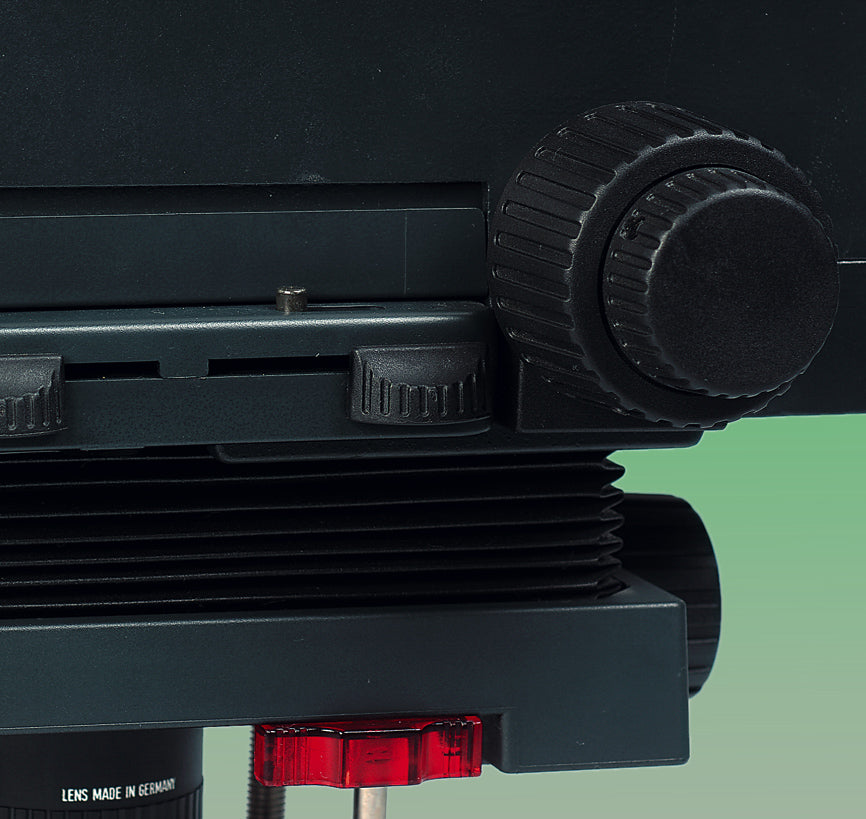

Focusing with additional fine drive. Height adjustment with weight compensation by a roll-off spring mechanism.

Filter holder for square filters and framed Multigrade® filters, can be swung out and adjusted in height, with diffusor plate for integral metering.

B & W Enlargers SYSTEM-V

Lamp head with 75 W opal lamp, lamp adjustable. Exchangeable double condensor system up to 6 x 9 cm (4449). Filter drawer for e.g. Multigrade® Filter.

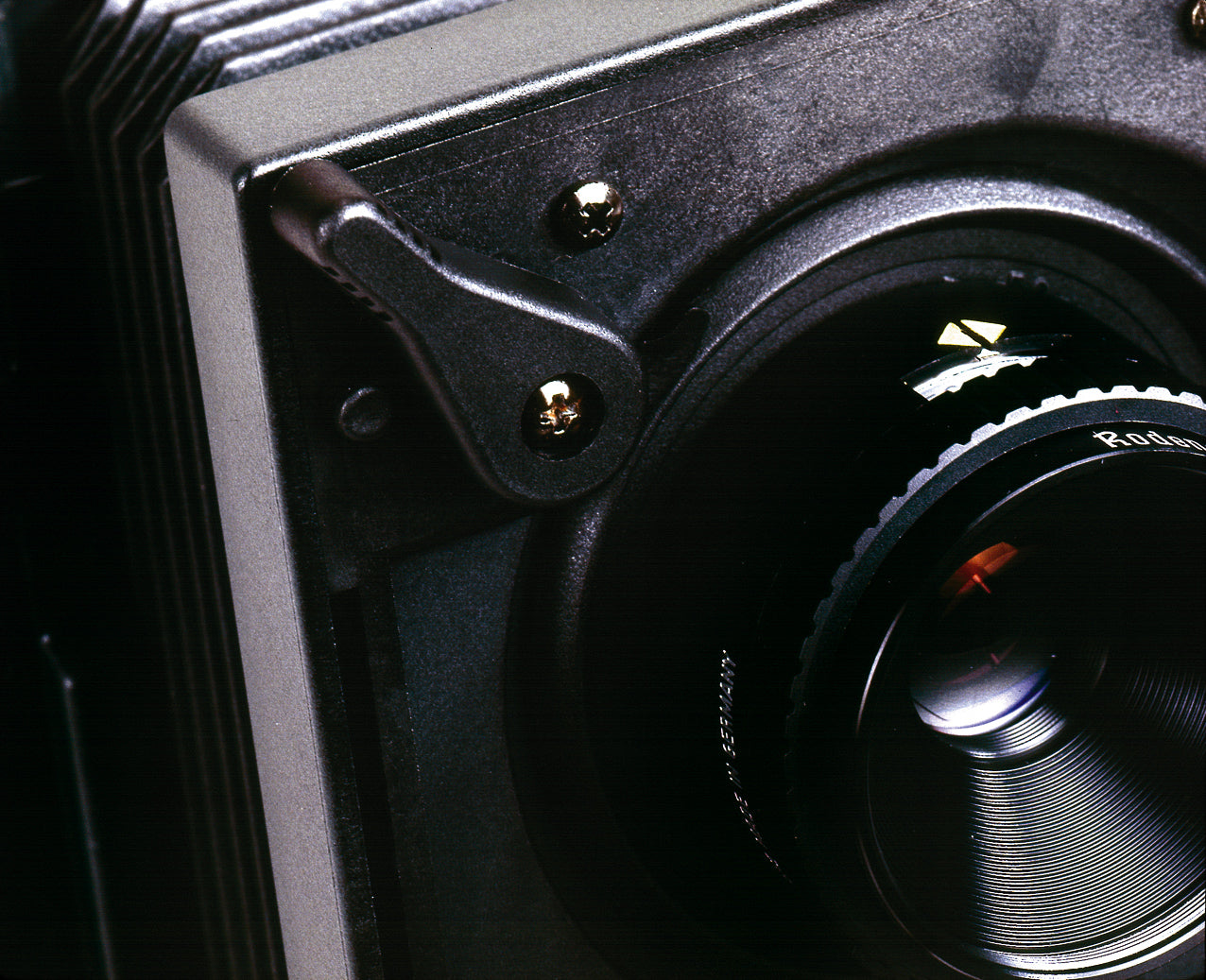

Removable compound negative carrier with interchangeable inserts, adjustable masking strips, adjustable film stops and grid pins. Lens stage with spirit level and red filter, tiltable for distortion correction on Scheimpflug principle. Quick change attachment for lenses. Height adjustment by hand-crank operated friction drive on plastic bearings. Wall and floor projection possible.

Wide, vibration-resistant column of embossed aluminium tubing, with dull black anodized surface, cm and inch scales and markings for enlarging scales. Matt-gray laminated baseboard with individually height-adjustable feet. Spirit level on column base.

Can be converted into a copy stand.

Scope of supply: Incl. compound negative carrier, lamp, two lens holder rings and dust hood, without lens.

Specifications

• Lamp: Opal lamp 75 W, E 27 socket
• Cord: approx. 2.50 m (8 ft. 2 in.)
• Filter drawer: 85 x 85 mm (3.3 x 3.3 in.)
• Column (HxWxD): approx. 1000 x 70 x 35 mm (39.4 x 2.8 x 1.4 in.)
• Baseboard (WxDxH): approx. 600 x 500 x 32 mm (23.6 x 19.7 x 1.3 in.)
• Distance between optical axis and column base: approx. 220 mm (8.7 in.)
• (Replacement lamp: 4356)
• Made in Germany
• Instruction Manual
