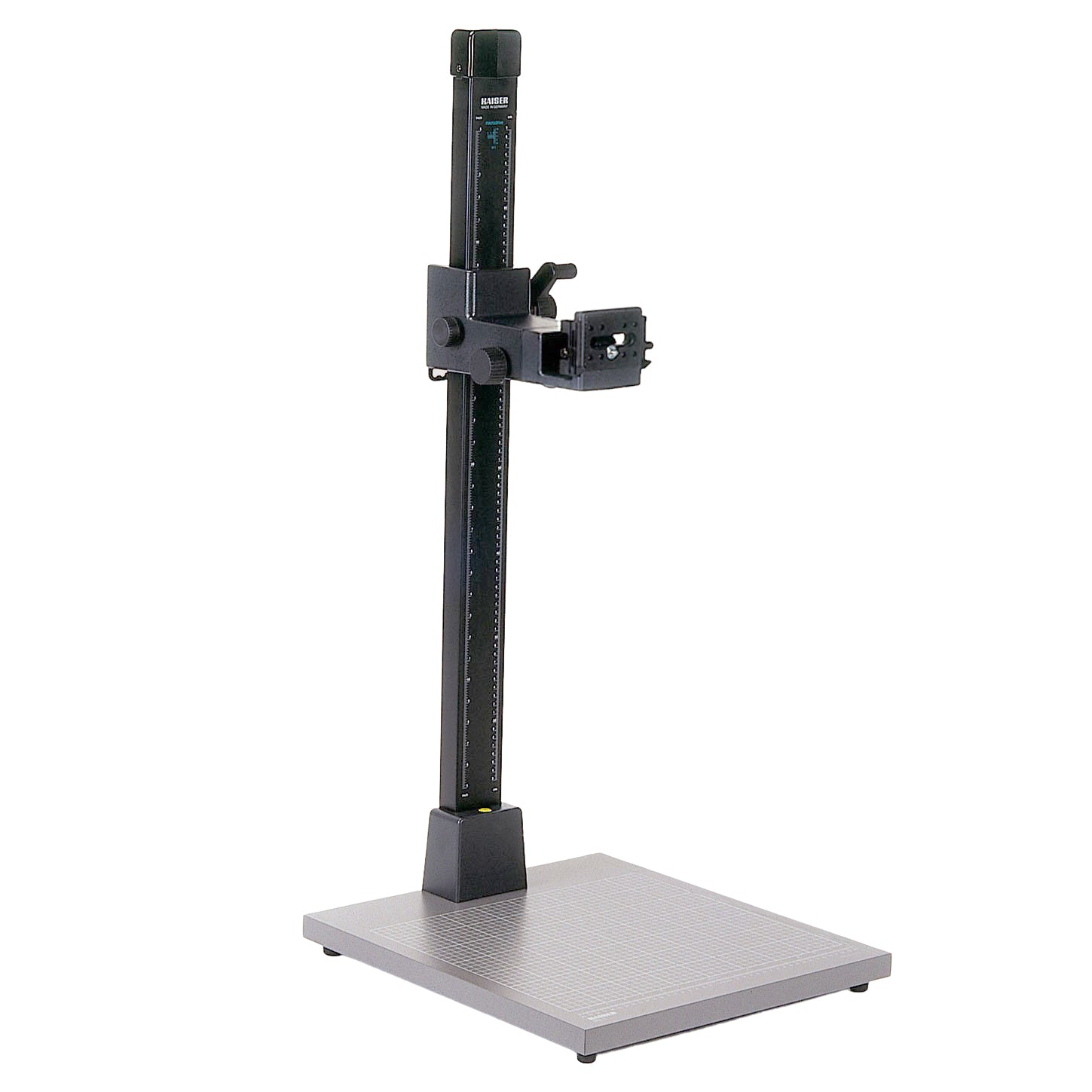

Kaiser Fototechnik 5507 RS 1 Copy Stand "microdrive"

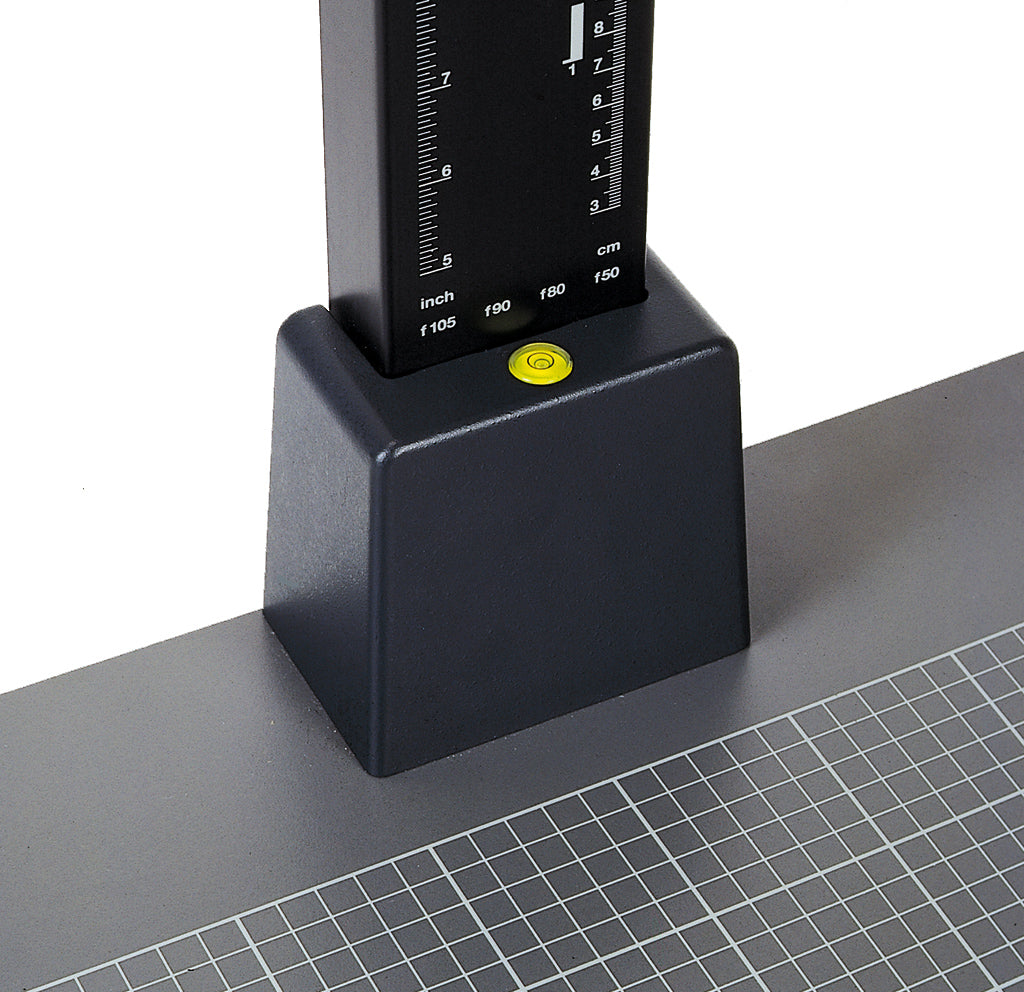

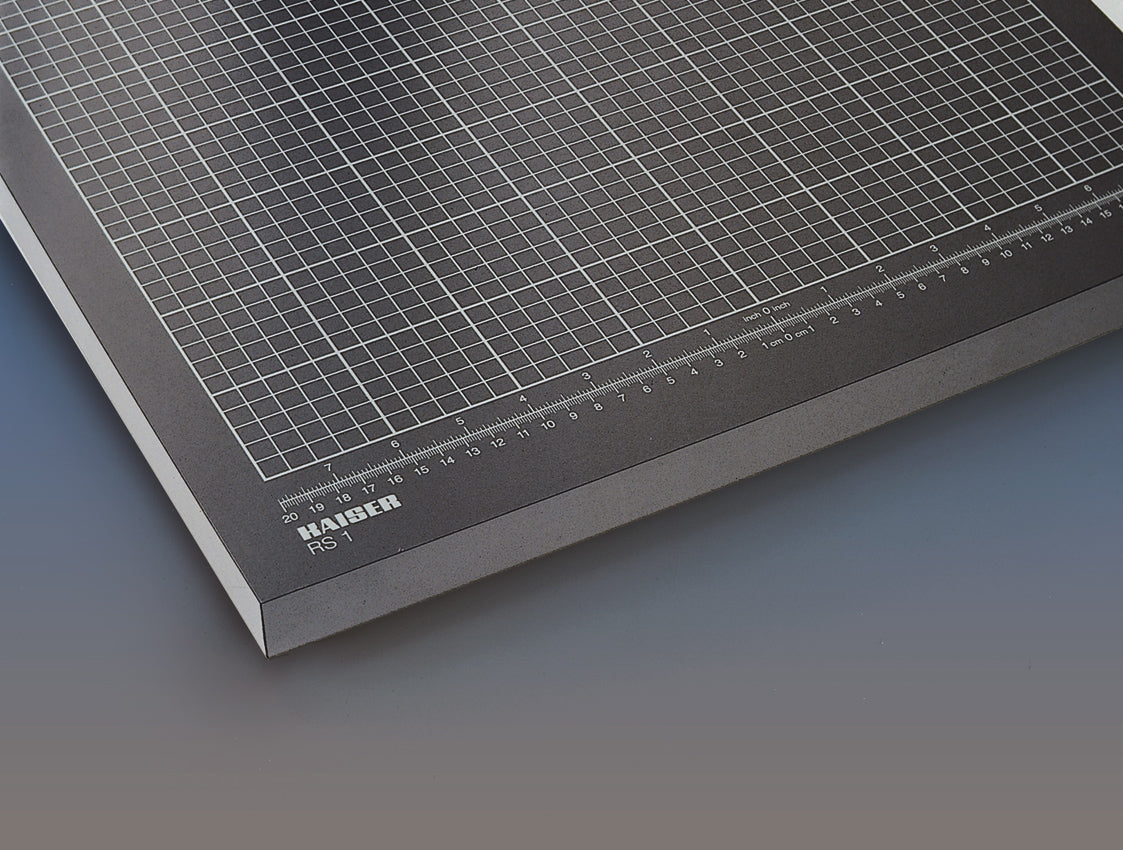

Non-reflecting matt grey base board with printed fine grid. Feet adjustable in height. Spirit level in column base. Extra-wide and extremely vibration-resistant column of dull black anodized aluminium tubing with cm and inch scales. Hand crank-operated height adjustment by friction drive on plastic bearings. Weight compensation by roll-offspring mechanism. Column can be mounted rotated 180°.
5507: RS 1 "microdrive" Camera Stand, same as RS 1 Camera Stand (5510), but with hand-cranked, rack-and-pinion height adjustment, additionally counter-balanced by a built-in scroll spring.
Additional fine drive with 1:6 step-down transmission for super-fine adjustment. Locking screw prevents inadvertent changing of the adjusted height.
Specifications
- Base board: approx. 450 x 500 x 28 mm (17.7 x 19.7 x 1.1 in.)
- Column height: approx. 1000 mm (39.4 in.)
- Made in Germany
- Instruction Manual
- Leaflet
Alternatives
5511: RS 1 Camera Stand
5510: RS 1 Camera Stand
5507: RS 1 "microdrive" Camera Stand
