Kaiser Fototechnik 5547 RB 555 AS LED Lighting Unit
LED daylight lighting unit with thermo-management, consisting of two light banks for even and soft illumination.
The efficiency of LEDs is much higher than that of conventional light sources. However, because LEDs also convert energy into heat, a thermal management system is necessary for optimal reproducibility, as otherwise both brightness and colour temperature would change as the temperature rises.
The integrated thermo-management ensures that the adjusted brightness as well as the colour temperature always remain constant, regardless of the room and unit temperature, thus achieving reproducible results. In addition, the LEDs have a longer service life.
This thermo-management includes both sensor-controlled temperature monitoring with dynamic compensation control and elaborate passive cooling via LED board and aluminium housing.

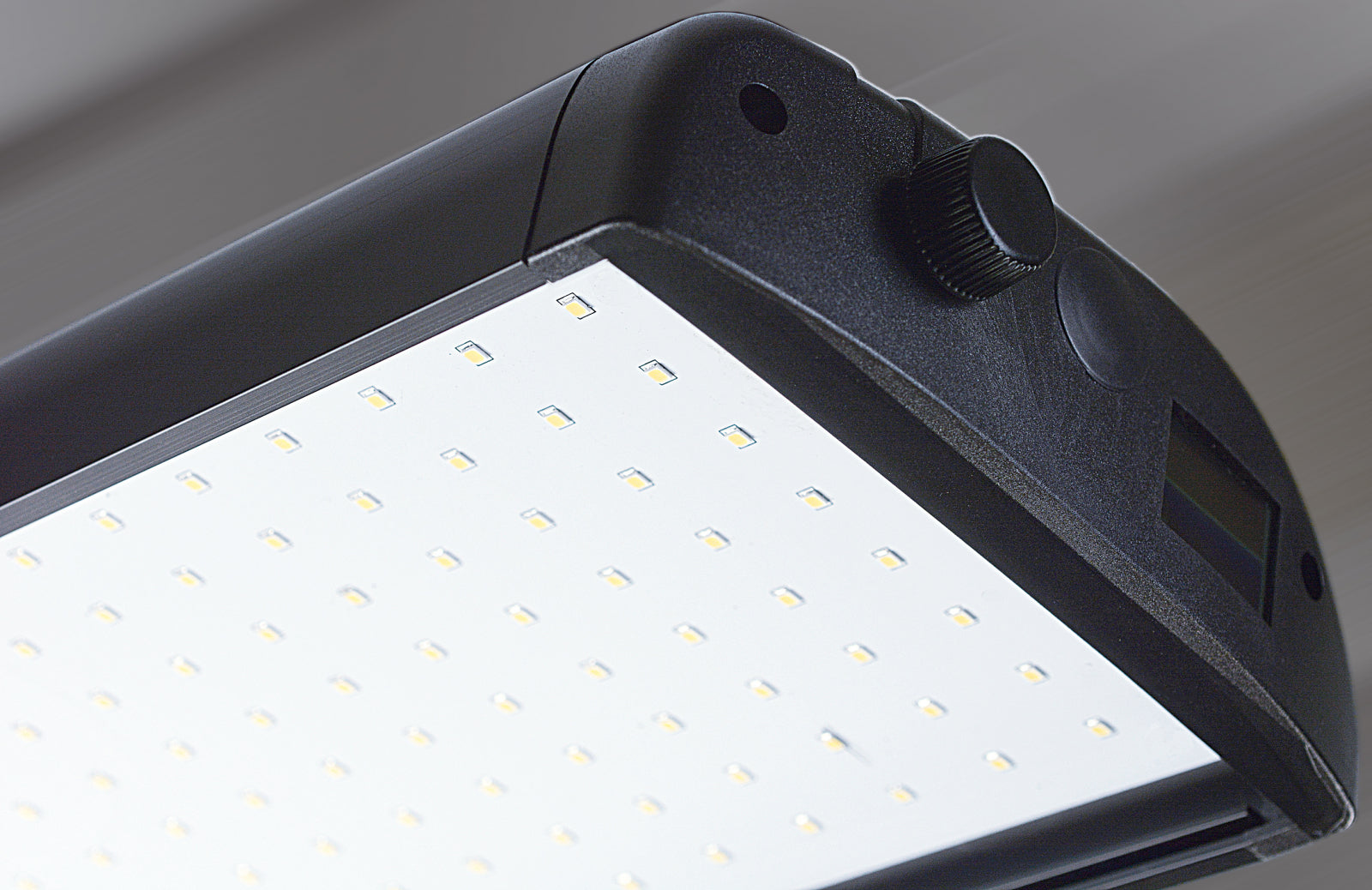

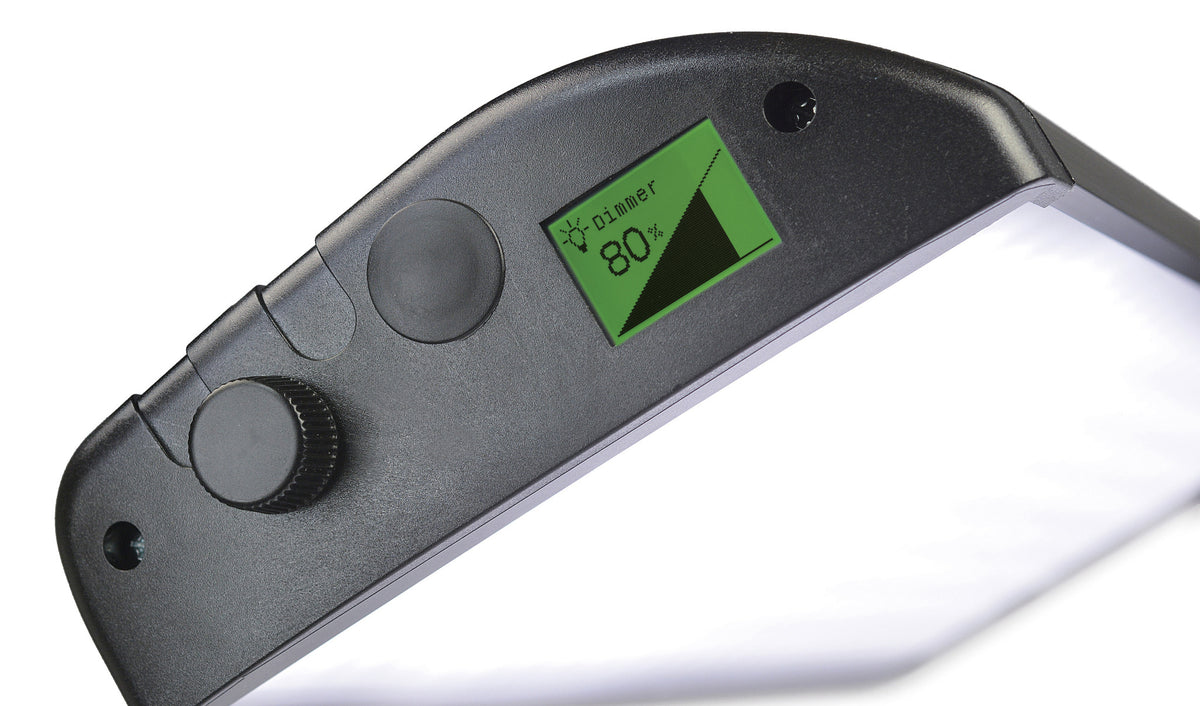

Each light equipped with 192 selected white SMD LEDs, 5600 Kelvin, CRI = 96. Emitted light has absolutely no IR and UV content, is flicker free without residual ripple. Lights can be dimmed separately or synchronously in 1 %-steps from 10 % up to 100 %. Illuminated info screen.
The light intensity of the two LED panels is matched to each other. This results in precisely homogeneous illumination with symmetrical alignment of the two light banks.
Memory function: The copy lighting starts with the brightness that was set before the last switch-off.

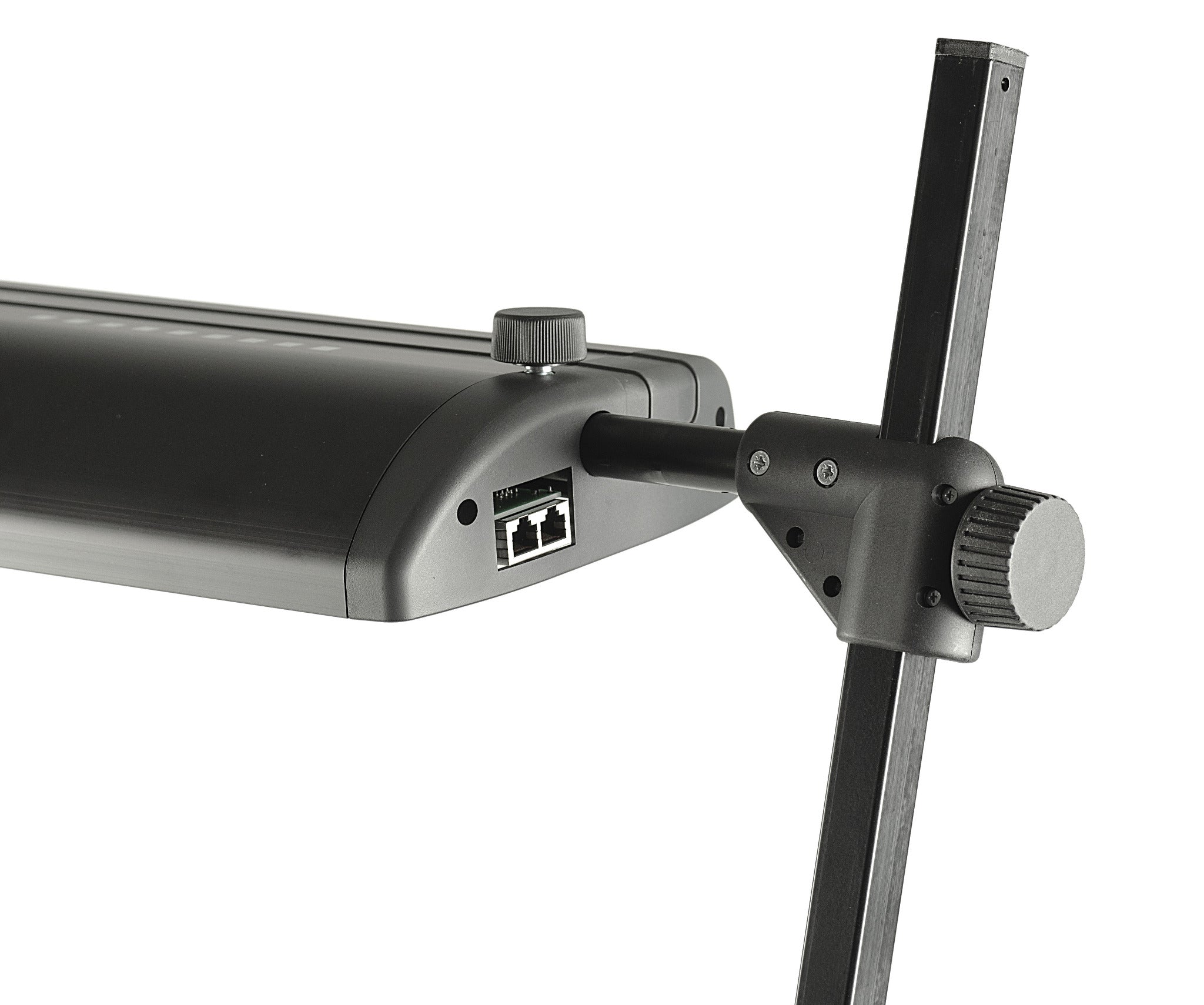

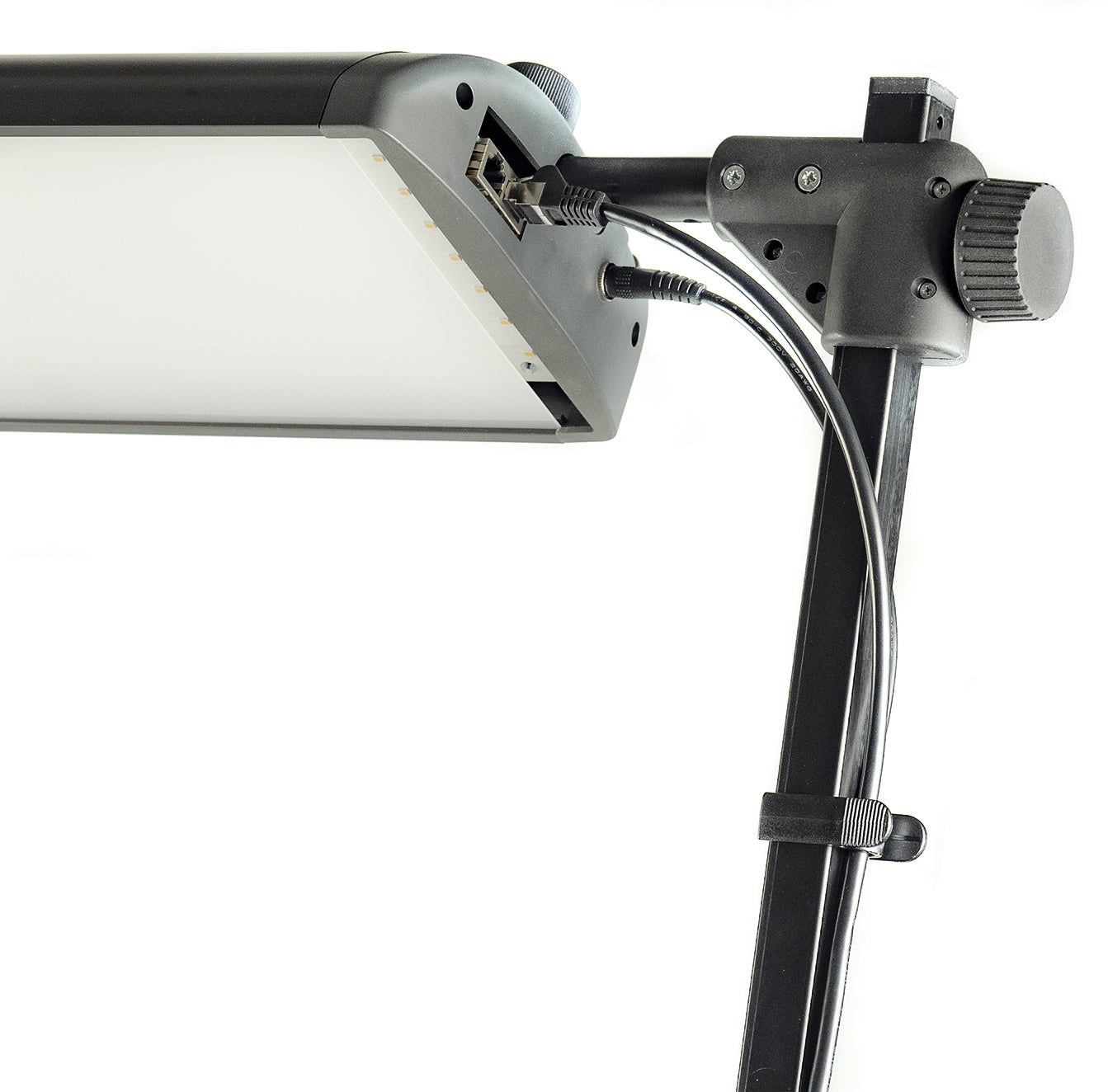

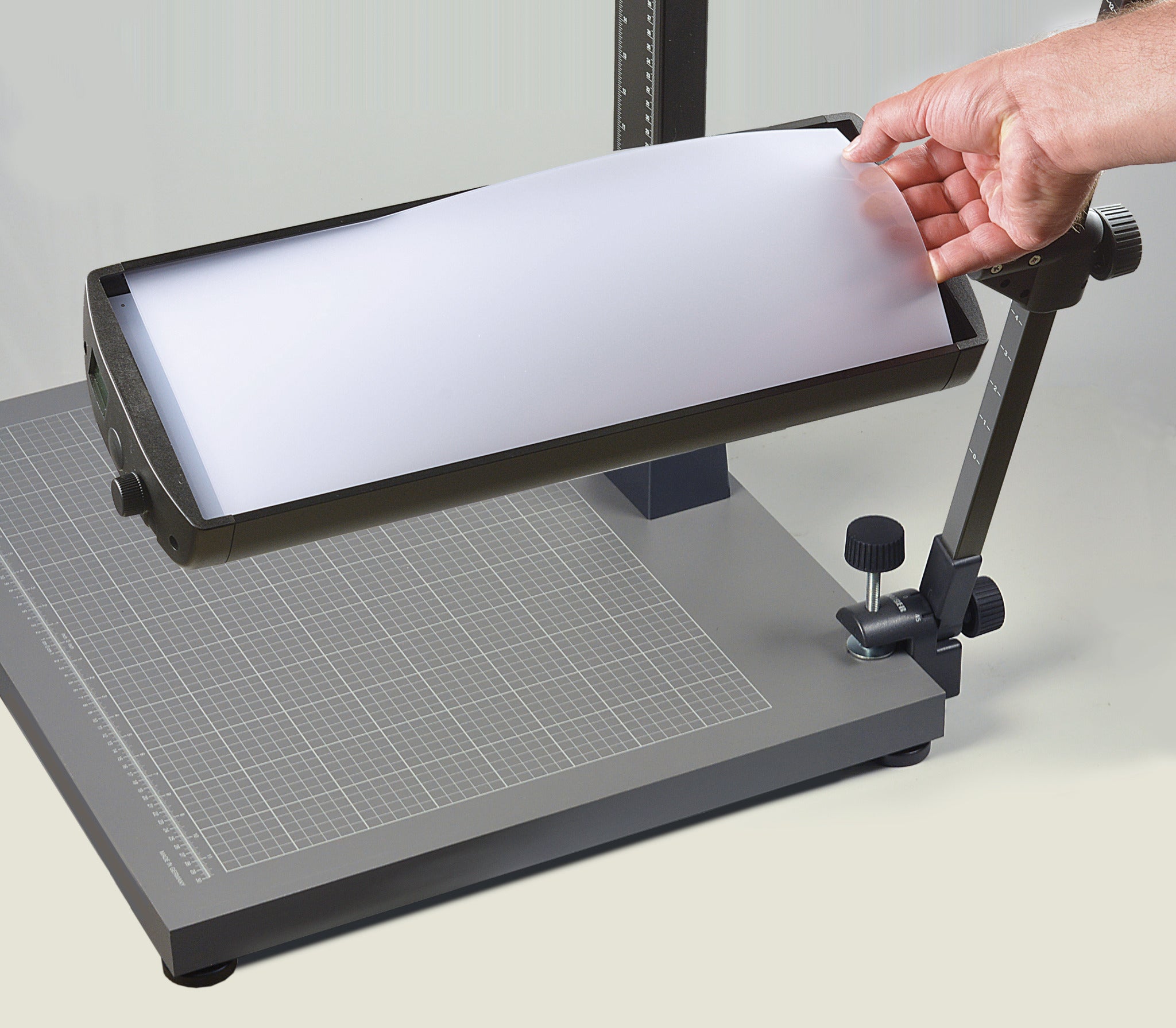

Lamp housings made of sturdy anodized aluminium section, can be swivelled, shifted and adjusted in height. Detachable soft screens. Vertical arms with height markings, tiltable with detents. Mounted with strong cast aluminium clamp bases, clamp width up to 48 mm (1.9 in.). Comes with mains adapter.
Specifications
Lights
- LED arrays: 2 x 192 SMD LEDs
- Colour temperature: 5600 K
- Colour rendition index: CRI: 96
- LED angle of radiation: 100°
- Max. illumination with soft screen: 4600 lux (based on uniform illuminated 16.5 x 11.5 in. flat subject)
- Max. illumination w/o soft screen: 5200 lux (based on uniform illuminated 16.5 x 11.5 in. flat subject)
- Power consumption: 2 x ≤ 28 W
- Operating voltage: 24 V
- Light emitting area of one light: 39 x 16.5 cm (15.4 x 6.5 in.)
- Vertical arms: 76 cm (29.9 in.) length / 20 x 20 mm (0.8 x 0.8 in.) edge dimension
- Made in Germany
- Leaflet
Mains Adapter
- Input: 100-240 V, 50/60 Hz
- Output: 24 V, 3 A
- Mains lead: approx. 2.50 m (8.2 ft.)

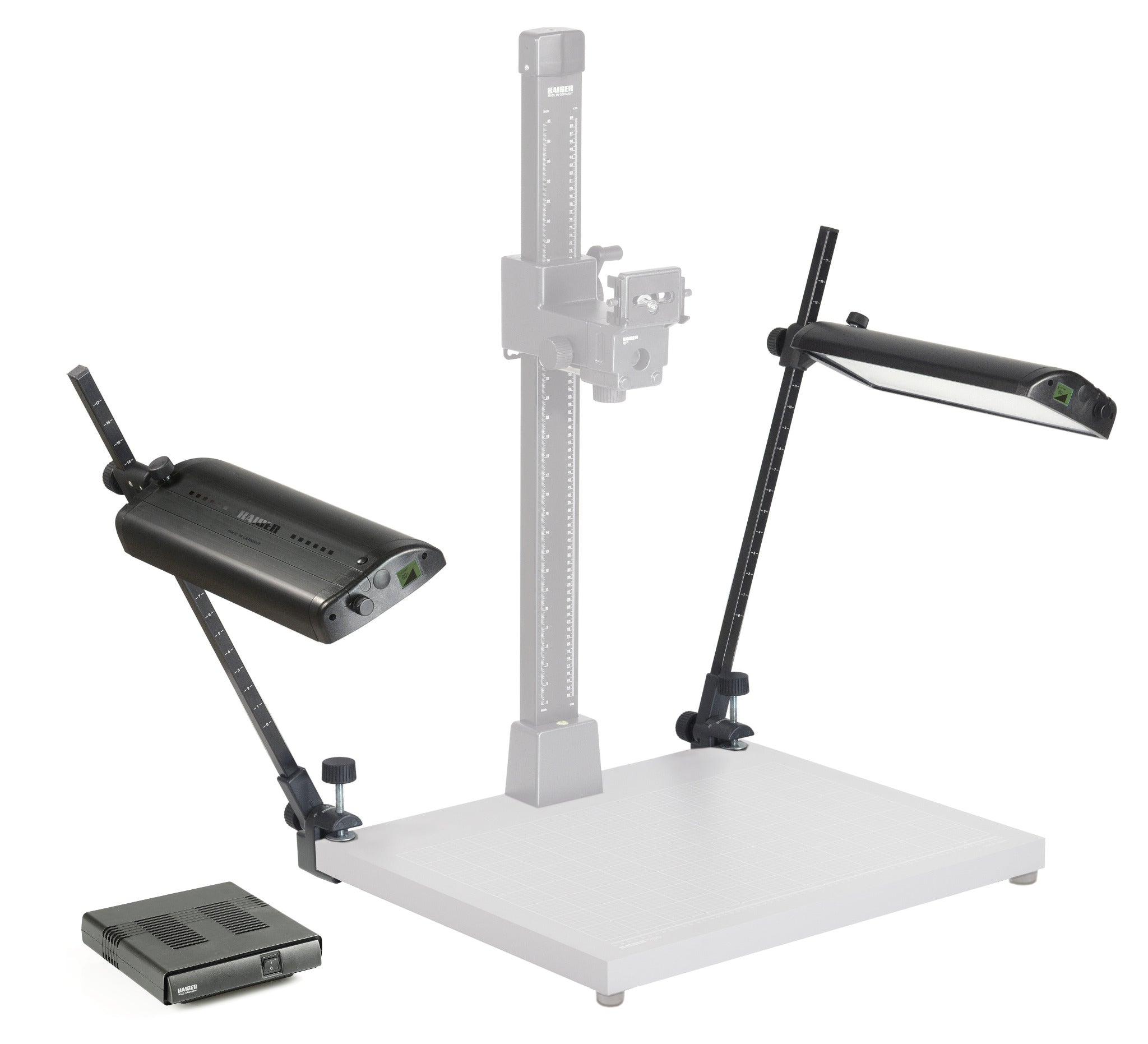

- The RB 555 AS lighting unit is suitable for copy stands of the R1 System and RD system (5602, 5603).
Accessories
Kaiser Fototechnik 5548 Polarizers for 5284 and 5547, 2 pieces
