Kaiser Fototechnik 5596 RB 5970 UV Lighting Unit

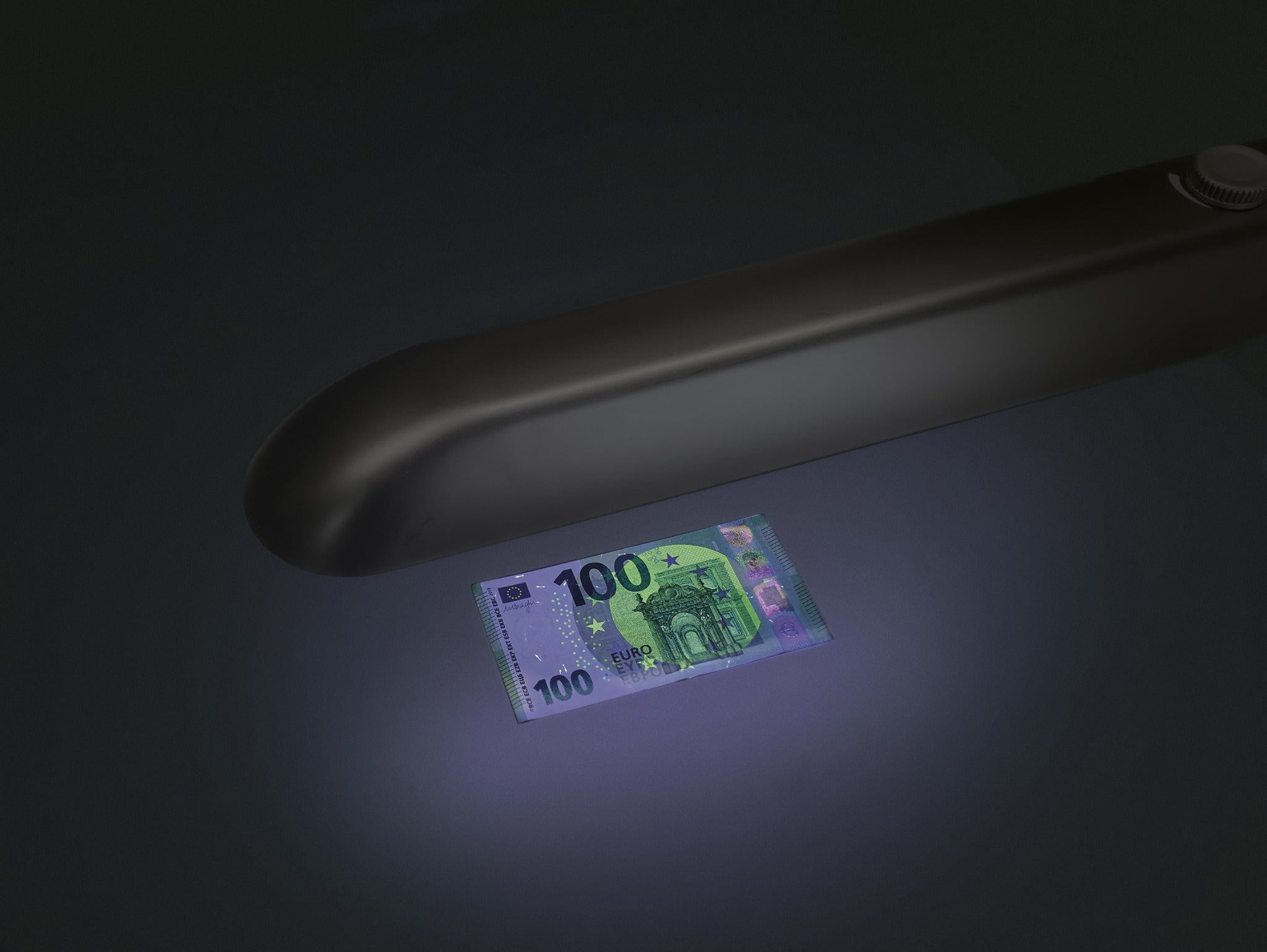

UV lighting unit with two light banks, each one fitted with 12 UV-A LEDs for applications in UV and fluorescence photography.

Each light separately dimmable with constant current driver for flicker-free operation.

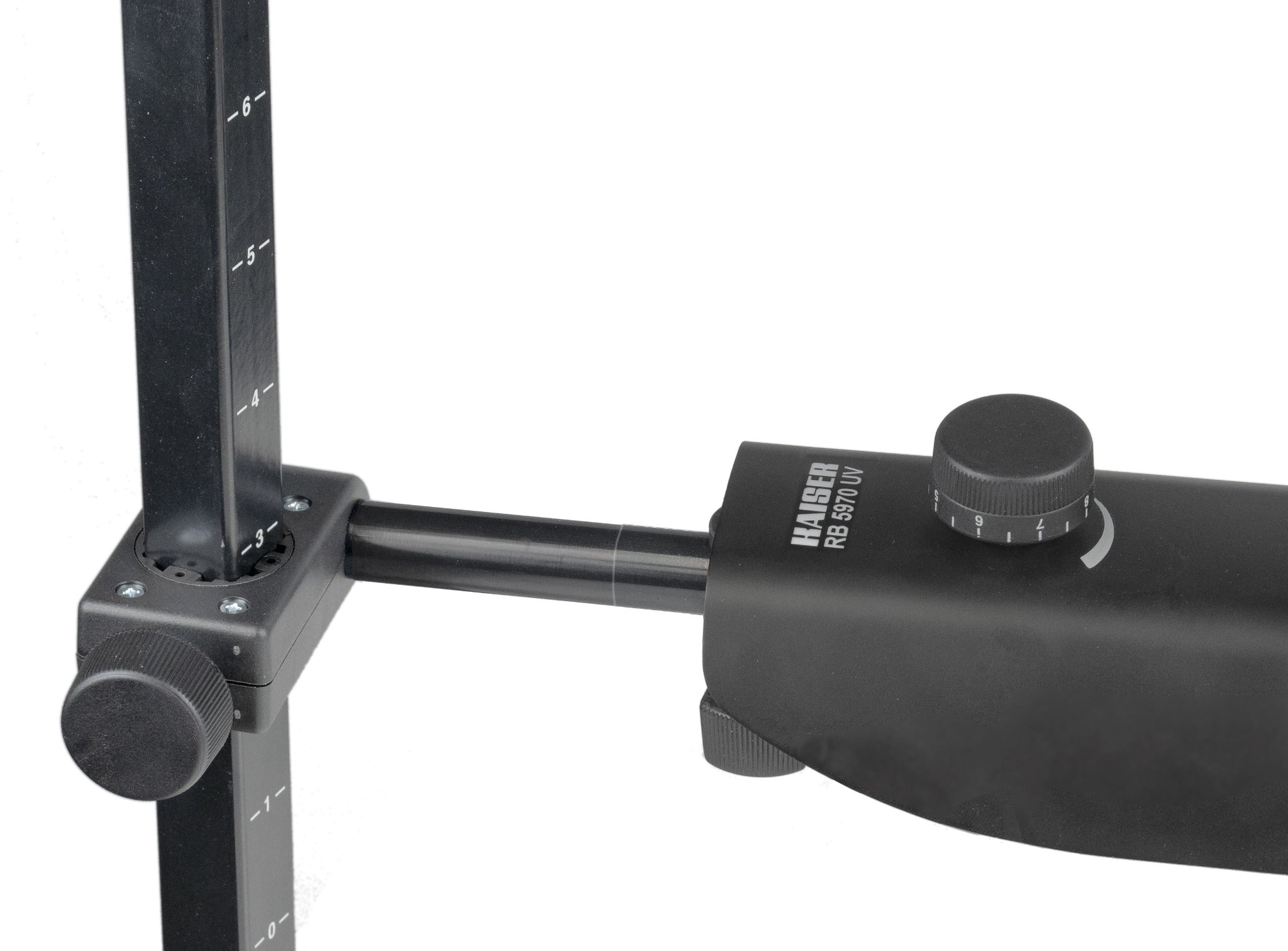

Lights can be tilted, swivelled and adjusted in height. Vertical lamp arms with height markings, tiltable with detents. Mounted with strong cast clamp bases, clamp width up to 48 mm (1.9 in.)

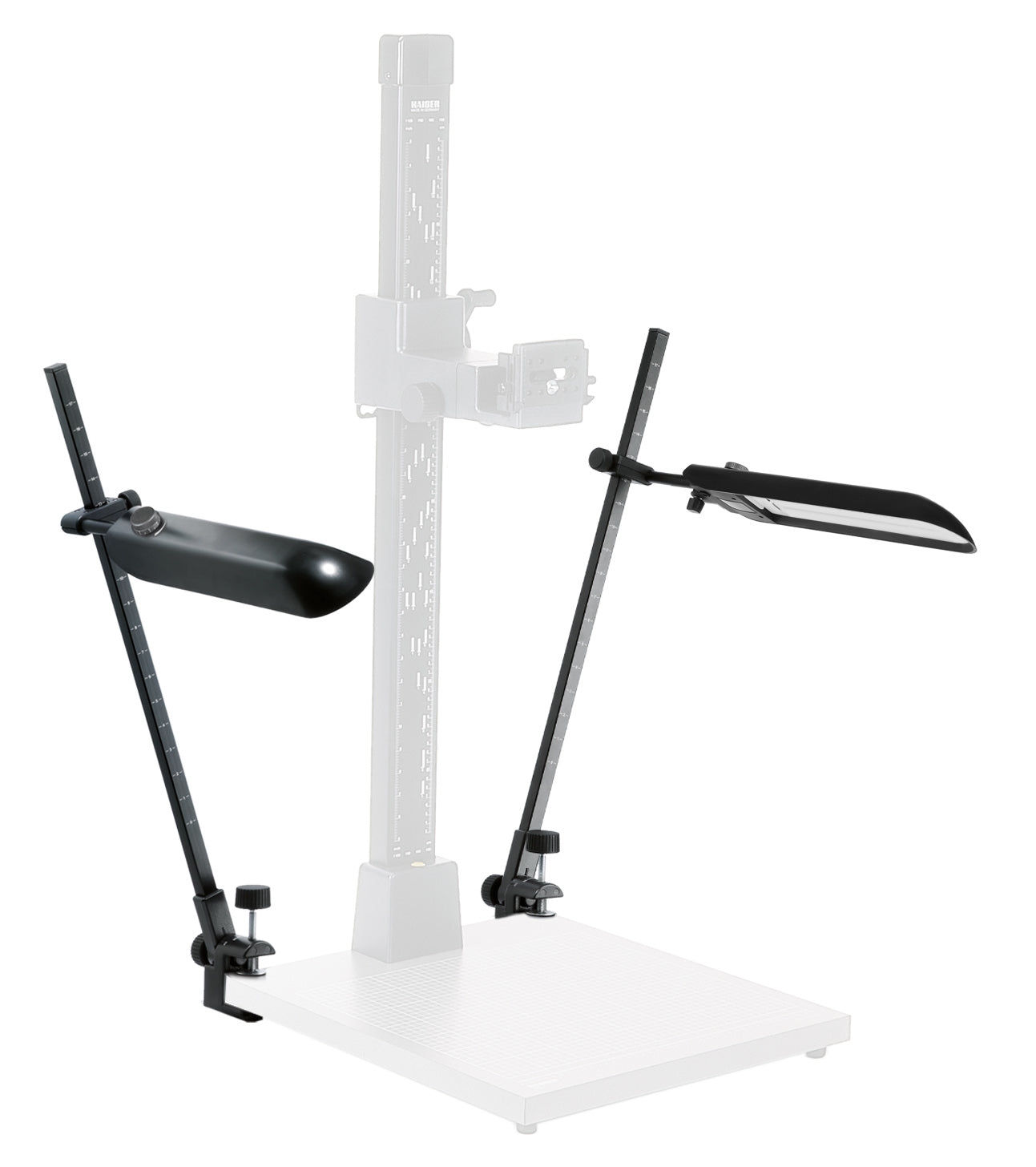

The RB 5970 UV lighting unit is suitable for all R1 system copy stands and for RS 2 XA (5411), RSD (5602) and RSDmot (5603) copy stands.

Specifications

• Light source: 2 x 12 UV-A LEDs (SMD)
• Radiation: 365 nm (UV-A)
• LED angle of radiation: 100°
• Power consumption: 2 x 9 W
• Operating voltage: AC 220 – 240 V, 50/60 Hz or  AC 120 V, 60 Hz (see type plate)
• Mains lead: 2 x approx. 1.70 m (5.6 ft.)
• Made in Germany
• Leaflet

Accessories

5549 - Extraneous Light Protector
