Kaiser Fototechnik 5620 RDmot Column 1.8m Motorized

Column made of special aluminium multisection tubing, matt black anodized, with cm and inch scales.

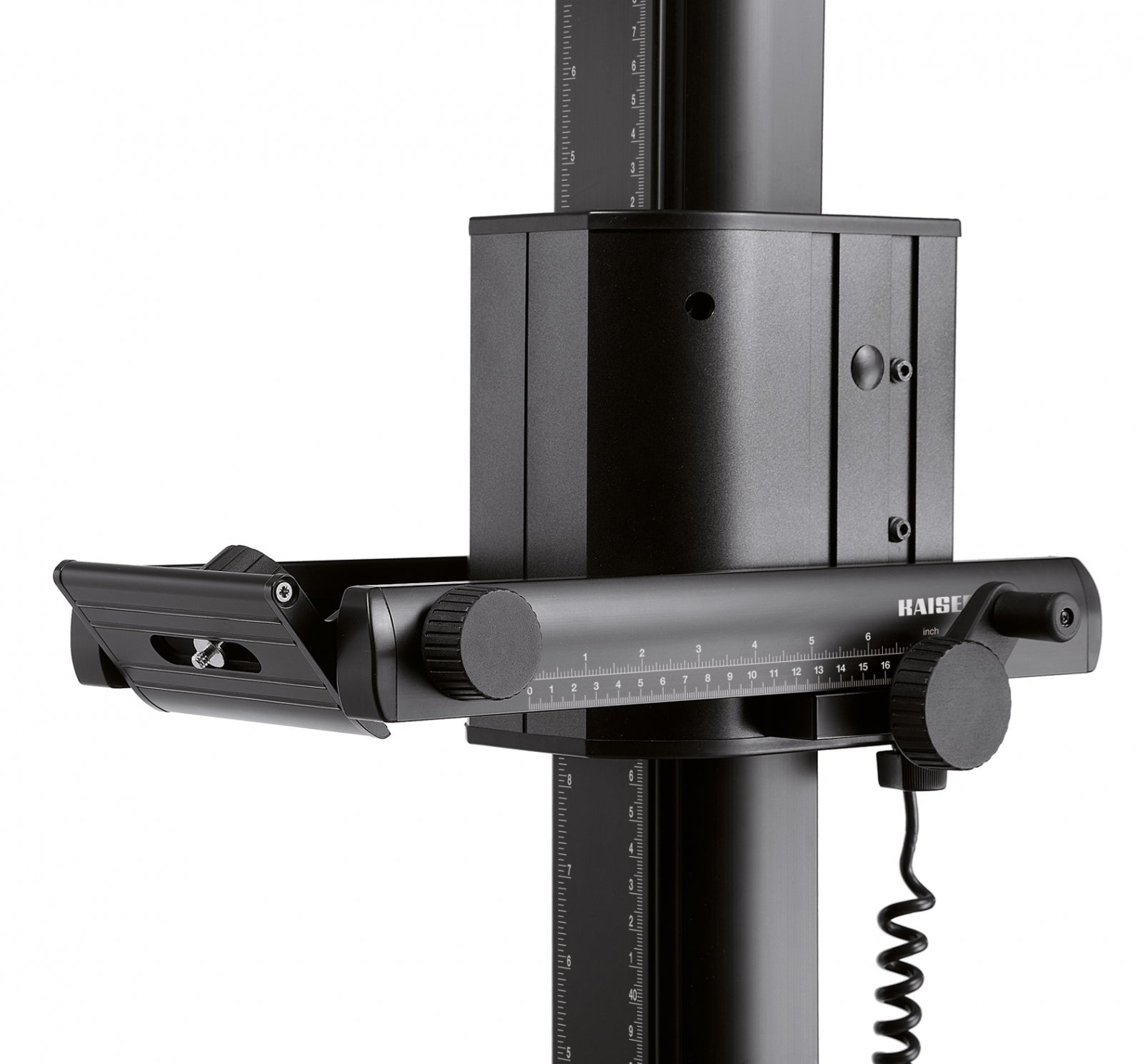

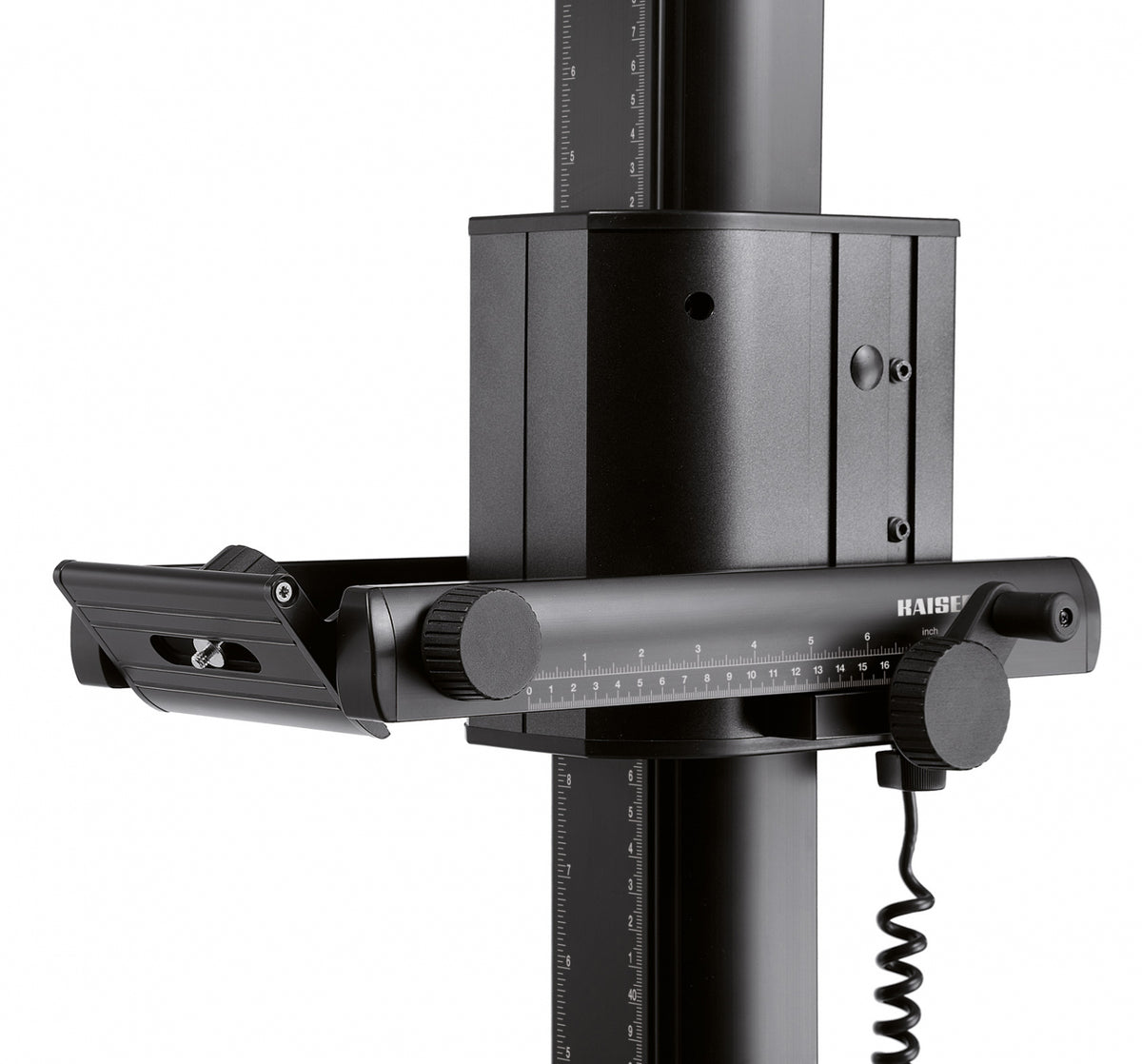

Camera carrier made of aluminium section, can be horizontally adjusted over approx. 25 cm (9.8 in.) with rack-and-pinion parallel guides. Left hand/right hand operation, two blocking screws prevent inadvertent changing of the adjusted position. Camera mounting plate tiltable by ± 90°. Connecting screw horizontally adjustable.

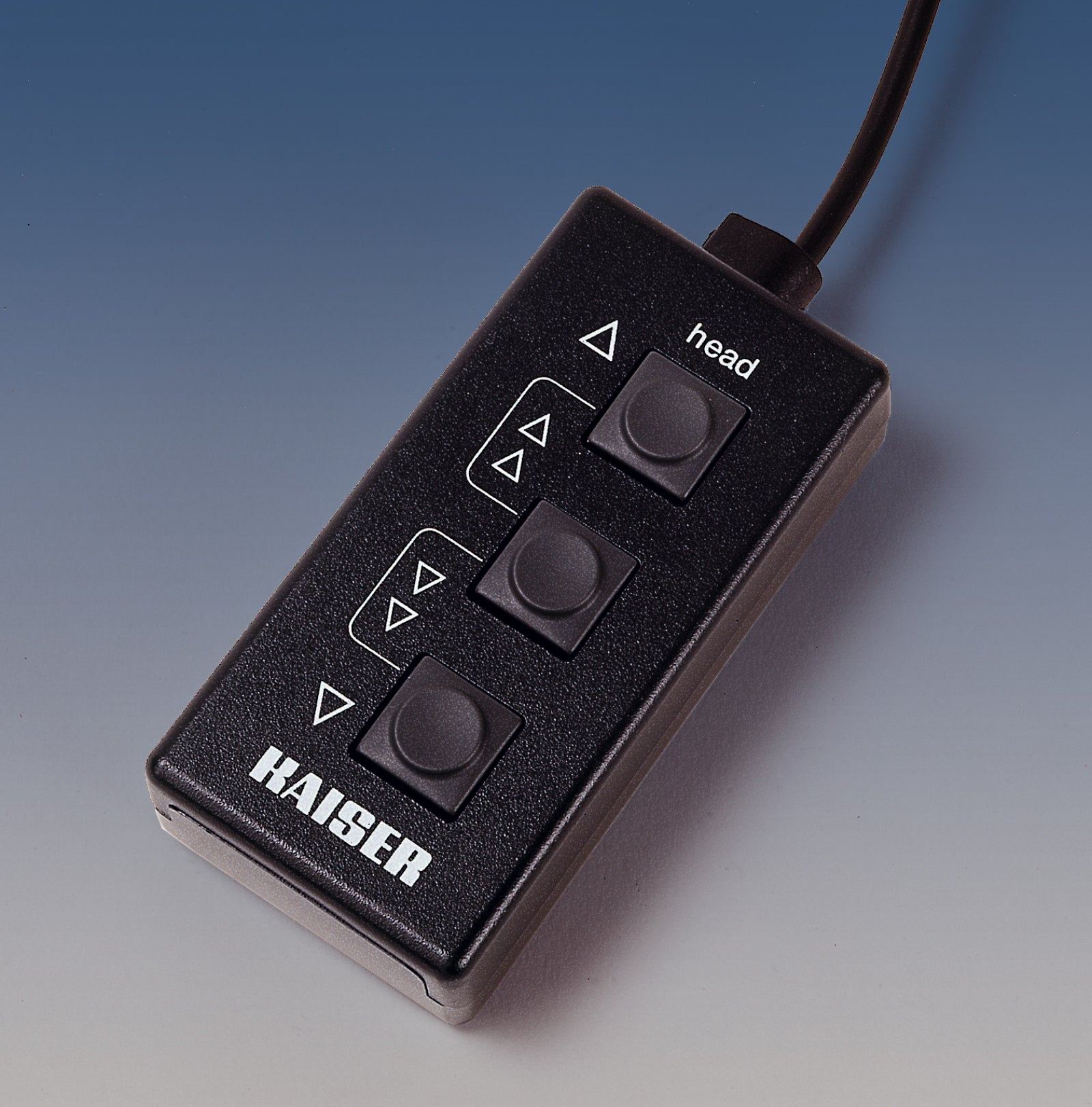

Height adjustment motorized, with two speeds. Cable remote control. Constant adjustment speed, independent of load. Automatic end switch by magnet sensor.

Specifications

• Column height: 1.80 m (5.9 ft.)
• Column cross section: 105 x 74 mm (4.1 x 2.9 in.)
• Loading capacity: 8 kg (17.6 lbs.)
• Camera mounting plate: 130 x 78 mm (5.1 x 3.1 in.)
• Reversing mounting thread: 1/4” / 3/8” changeable
• Made in Germany
• Instruction Manual
• Leaflet

Accessories

5624 - RD Wall Mount

5625 - Column Base for RD columns

5618 - 75H Base Stand

5630 - Table

5712 - Table for Copying Works
