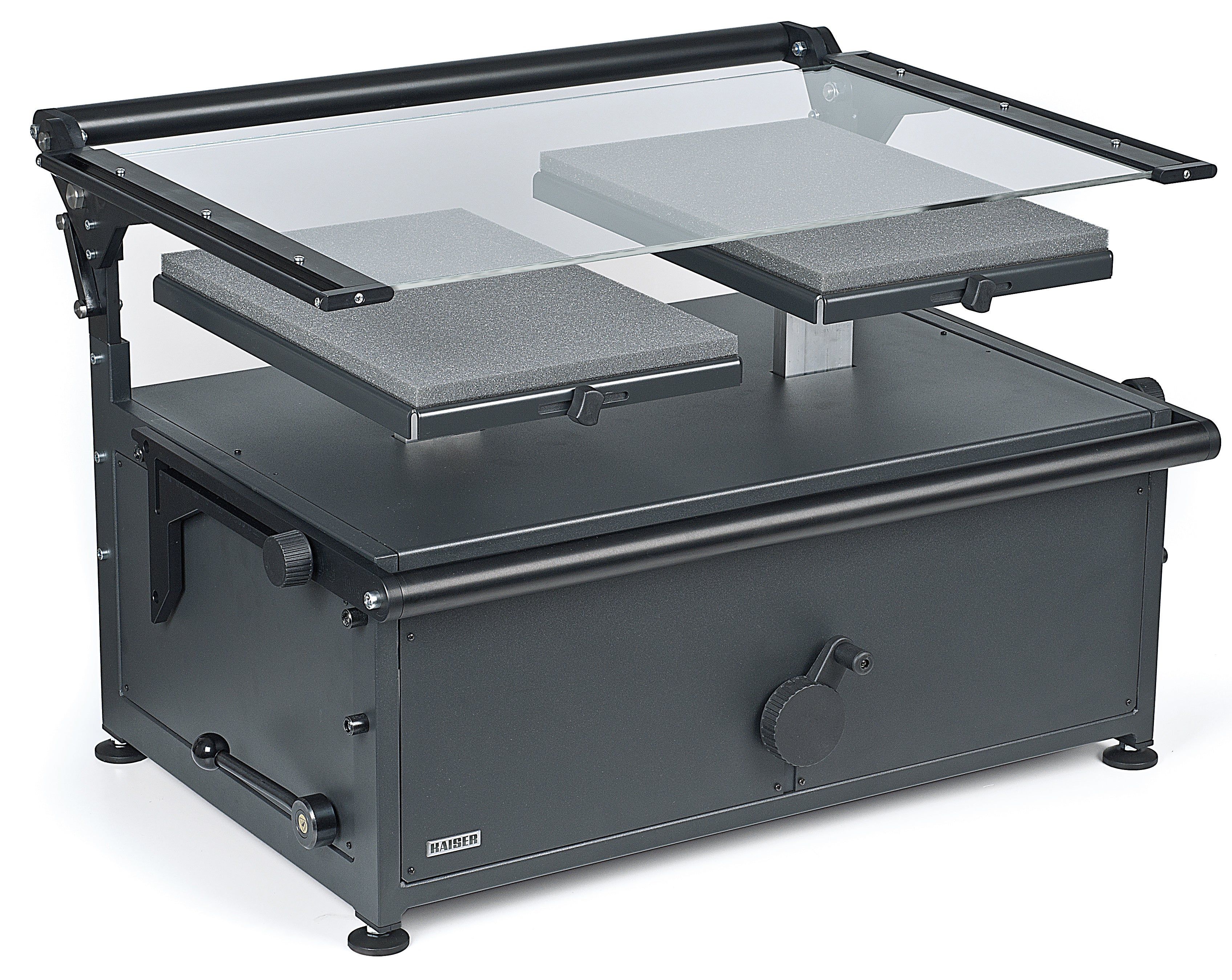

Kaiser Fototechnik 5631 Book Cradle 45/30
Special support for protective copy work from books with open sizes up to 73 x 45 cm (28.7 x 17.7 in.) and a thickness of 15 cm (5.9 in.).

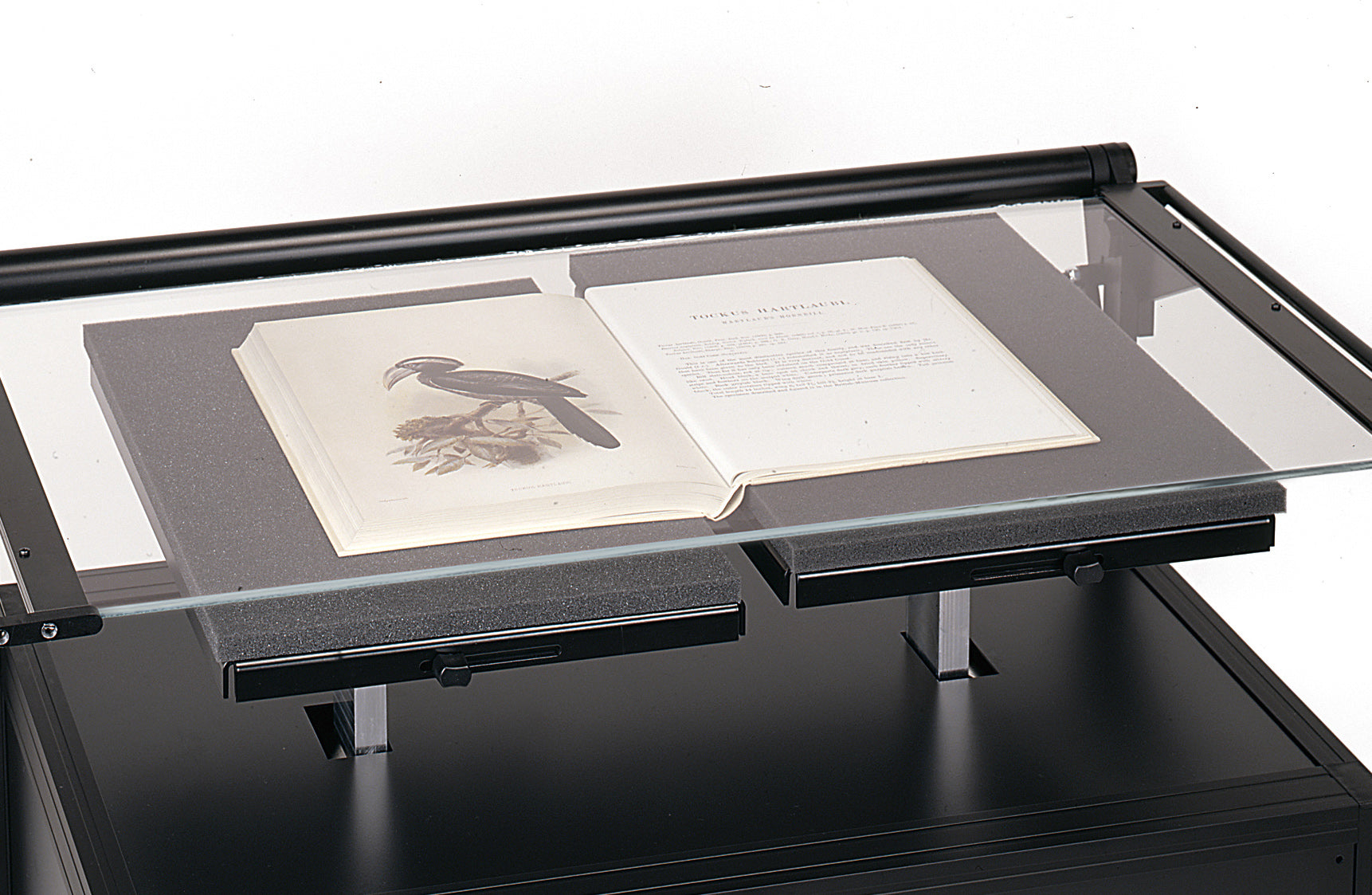

Lockable pressure plate made of 6 mm thick float glass, with antireflection coating on both sides. Easy to unlock by means of release rails on both sides. Glass plate locates in opening position.

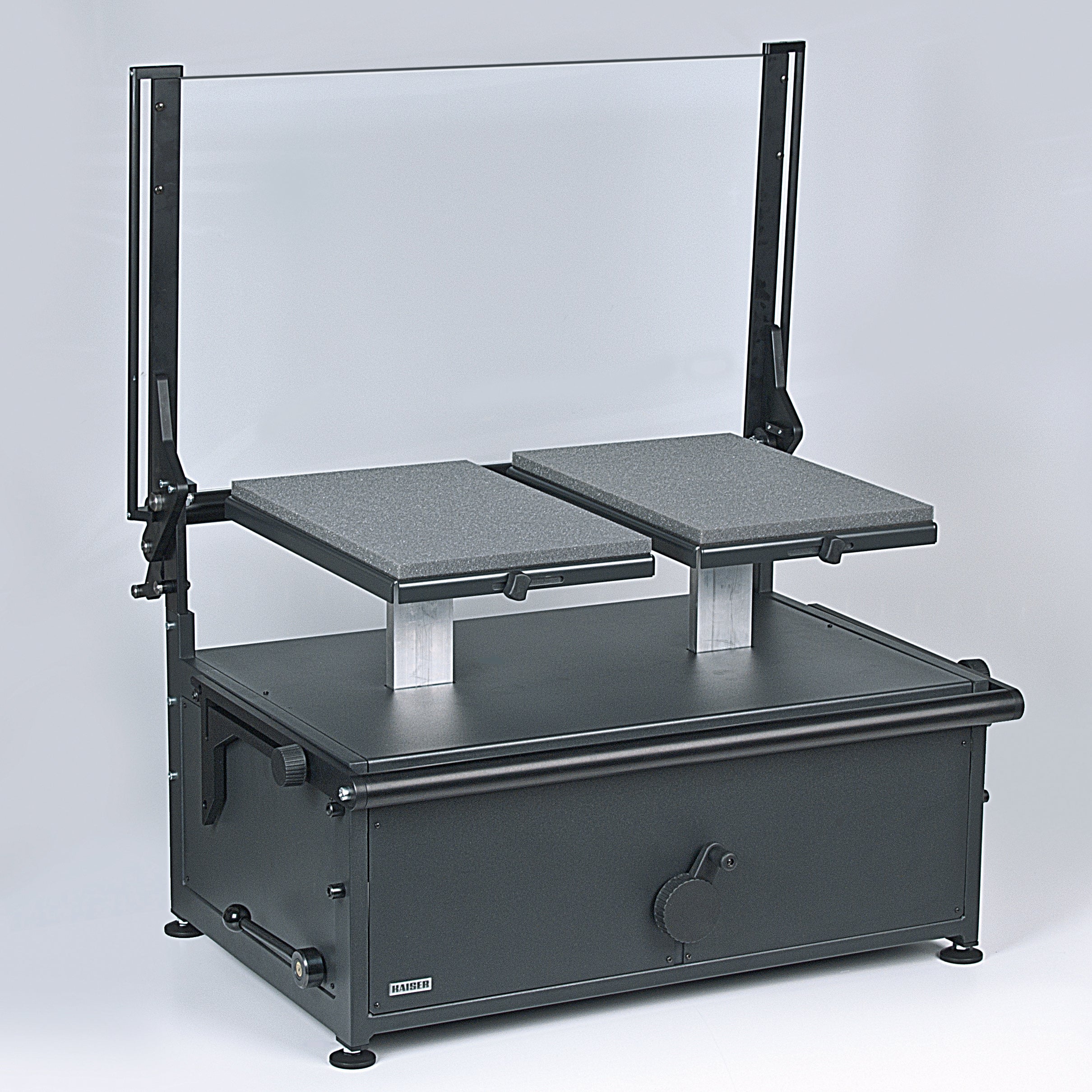

Two foam-padded platforms - each 30 x 45 cm (11.8 x 17.7 in.) - with adjustable space for spines of different sizes.
One-time height adjustment for optimal pressure by means of spindle drive with hand crank. Subsequently automatic pressure control after each turning of a page. Mechanism for quick pressure release and subsequent resetting with previous pressure.

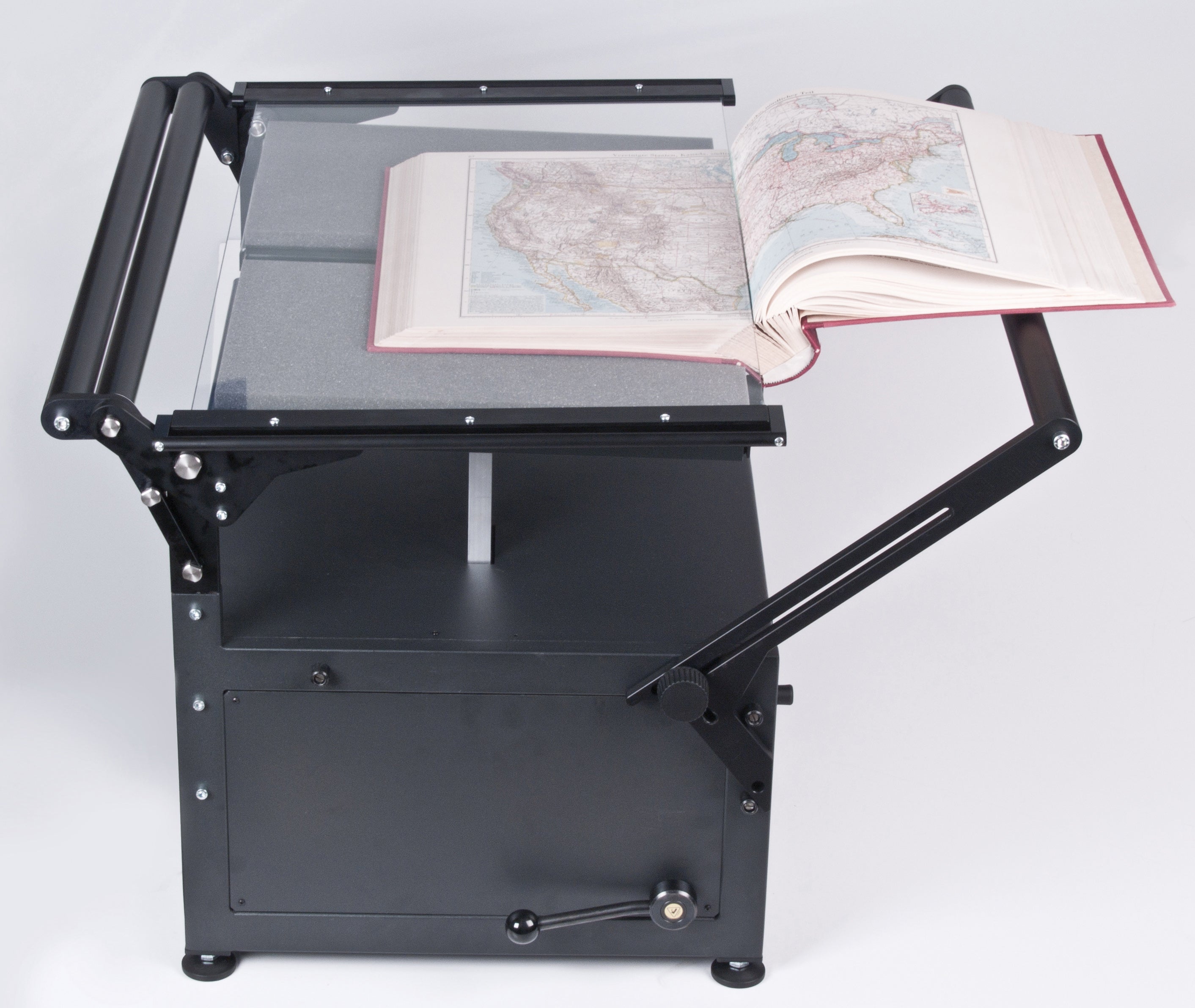

Fold-out support bracket to hold large-sized books (up to 90 x 60 cm (35.4 x 23.6 in.) open size) while individual pages are positioned underneath the pressure plate.

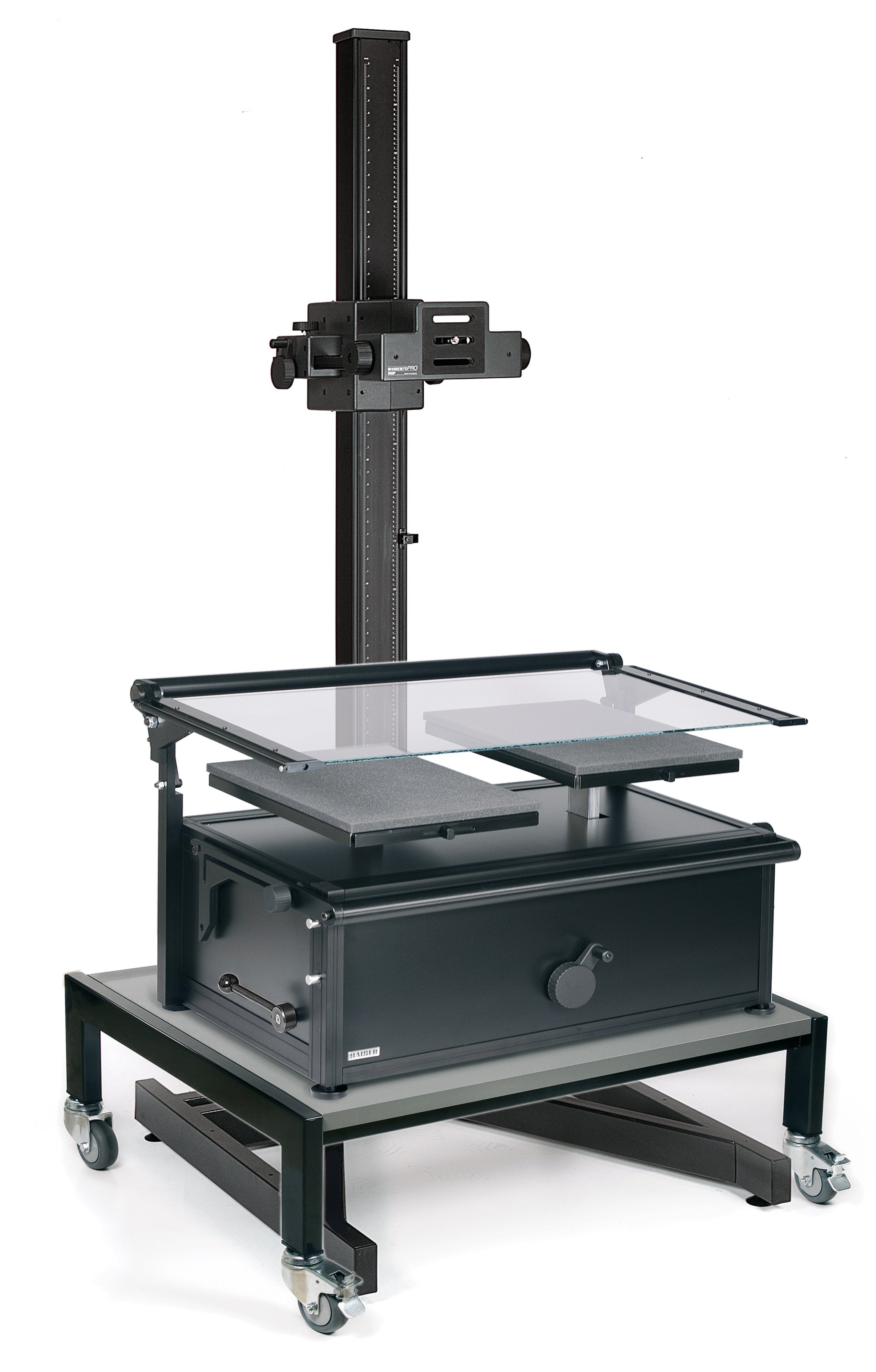

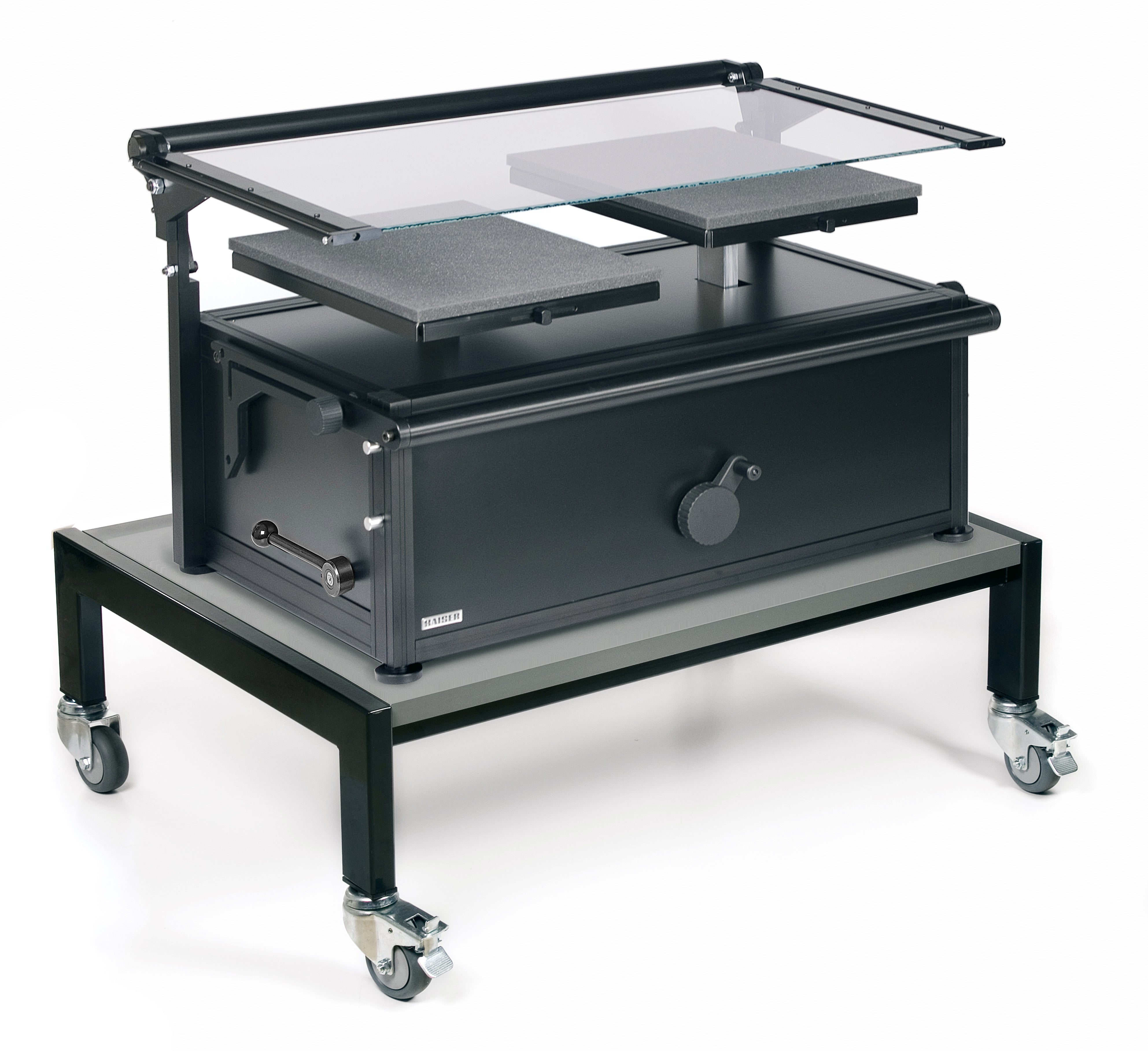

Working height with 5630 base frame: approx. 78 cm (30.7 in.) with adjustable feet or 84 cm (33.1 in.) with casters
Working height with 5712 table for copying works: approx. 102 cm (40.2 in.)
Specifications
- Dimensions (WxHxD): 860 x 555 x 650 mm (33.9 x 21.9 x 25.6 in.)
- Weight: approx. 57 kg (126 lbs.)
- Made in Germany
- Leaflet
- Instruction Manual
Accessories
Kaiser Fototechnik 5630 Table for Book Cradle 5631
Kaiser Fototechnik 5712 Table for Copying
Kaiser Fototechnik 5768 Foot Pedal Shutter Release for Cameras, with cable 1.8 m
