Kaiser Fototechnik 5708 RSP 2motion Column

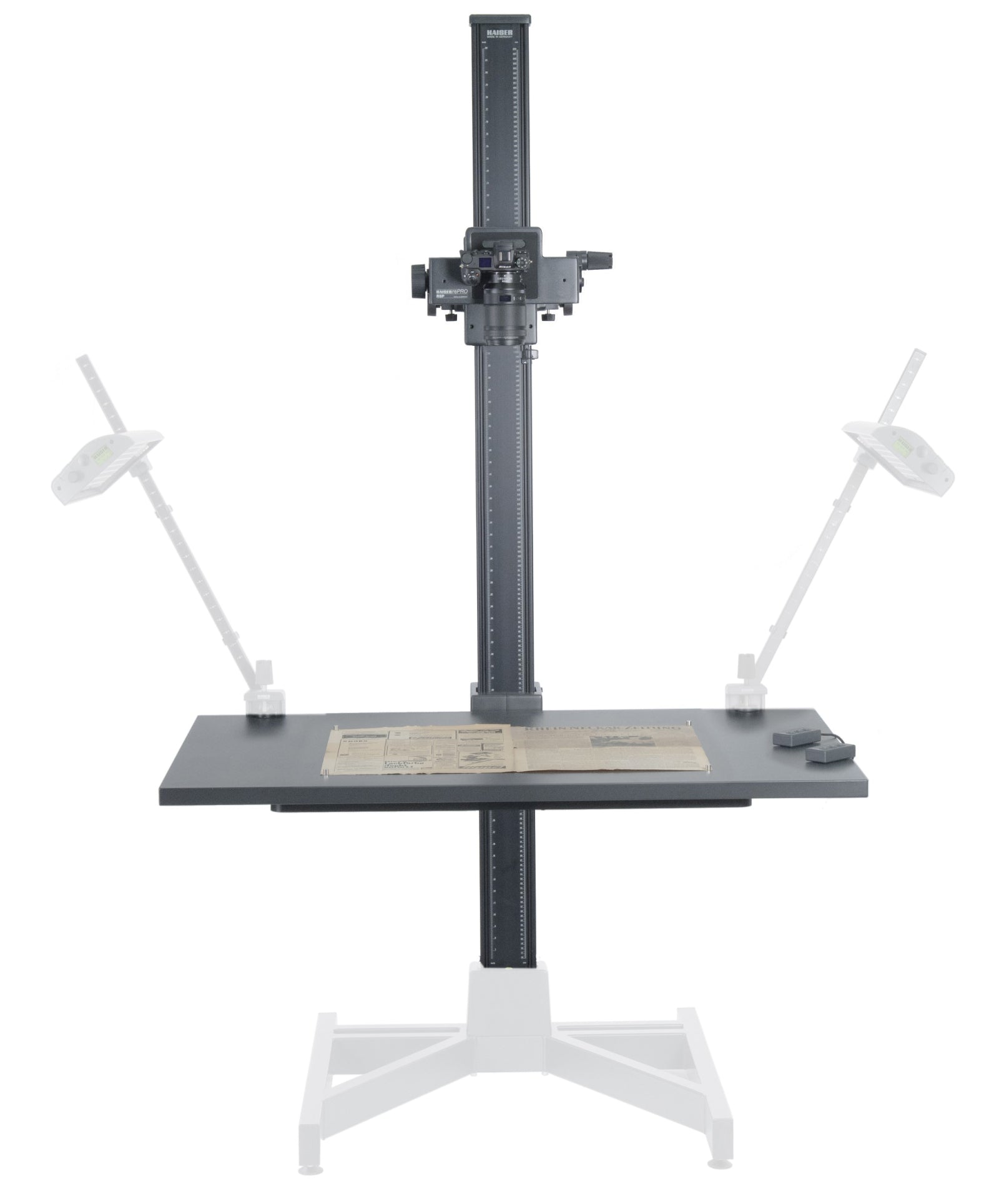

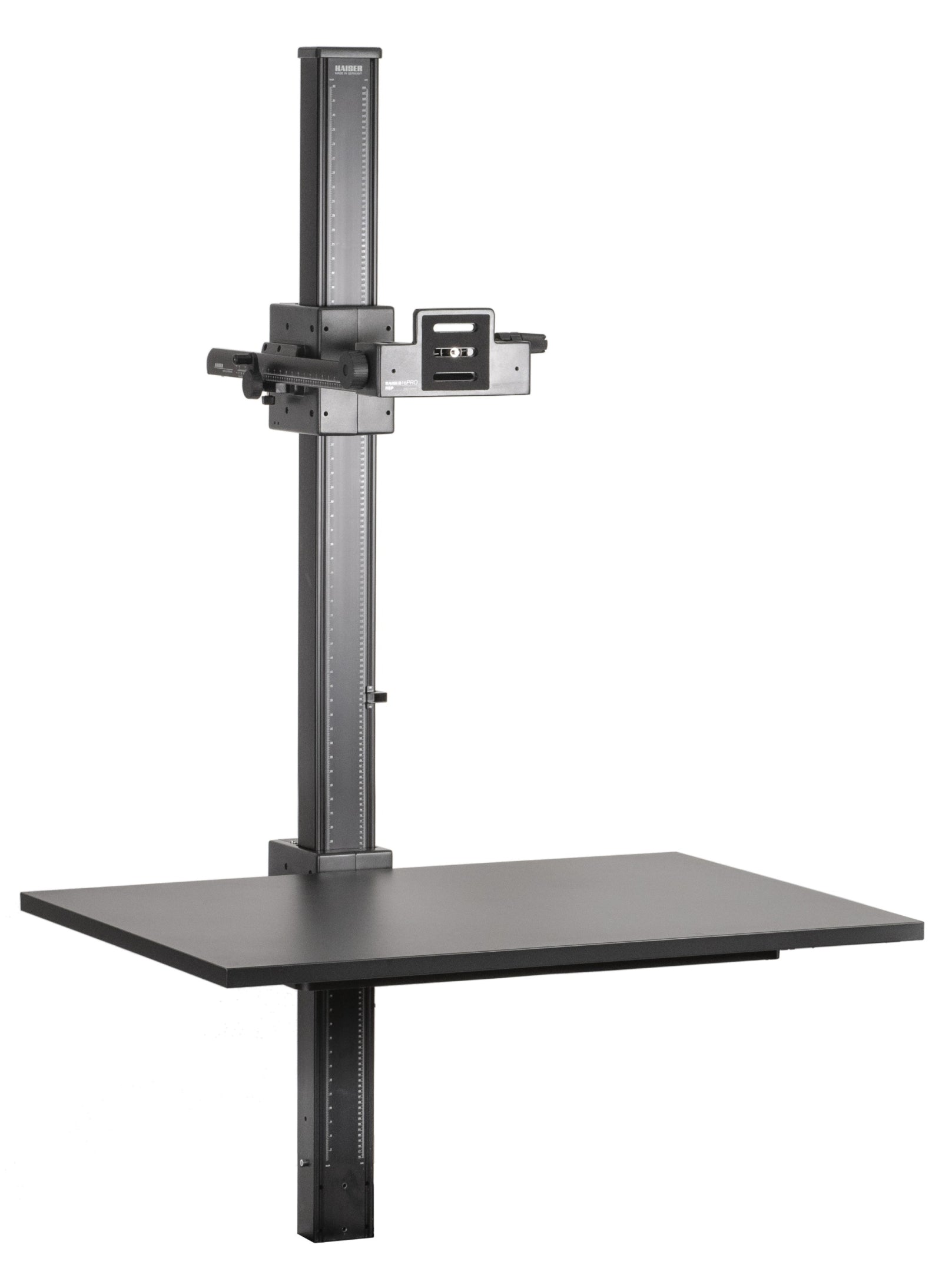

Extremely sturdy column, made of a multi-section special extrusion, black anodized, with printed cm and inch scales and two-level motor-driven adjustment.

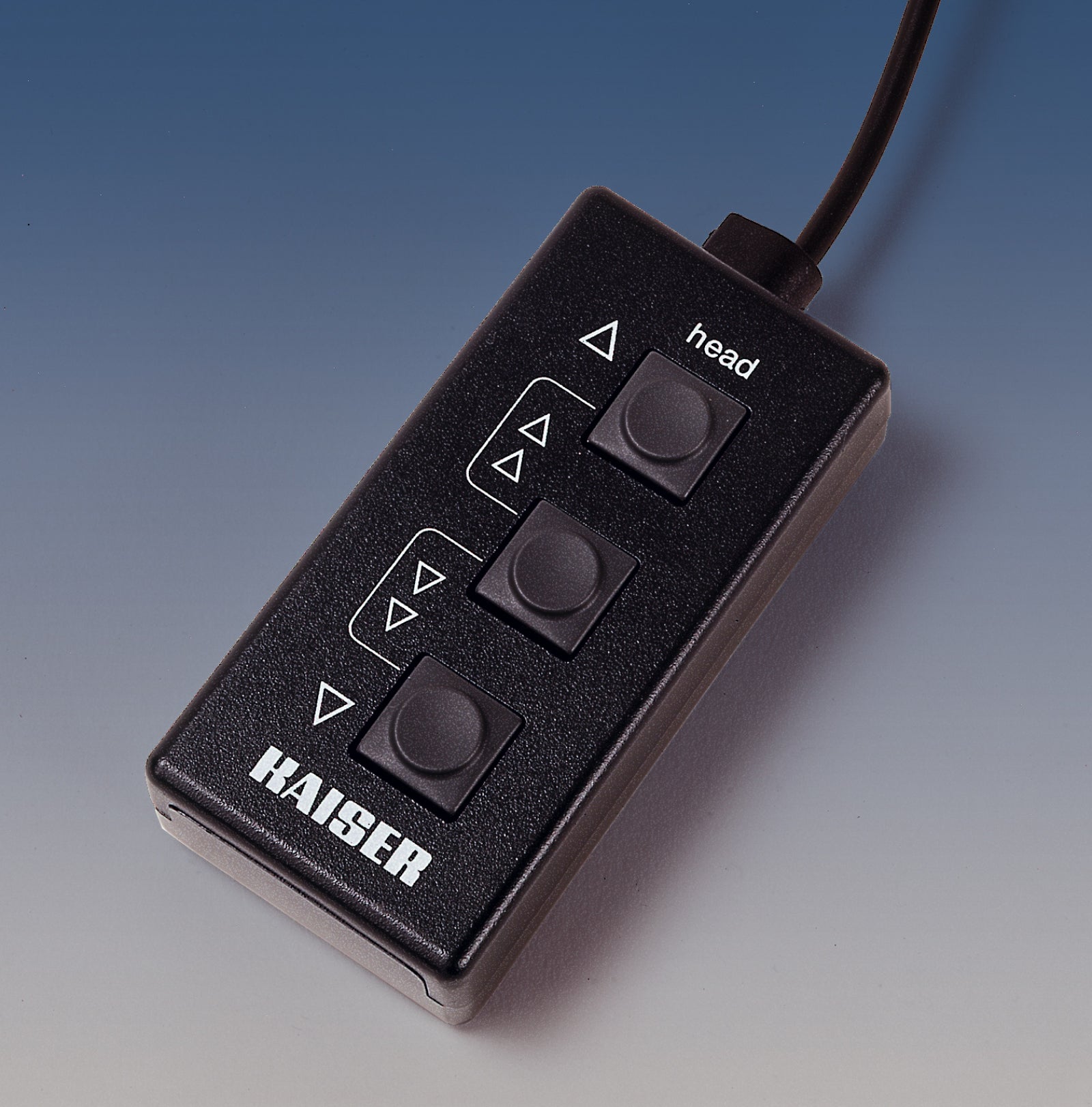

Camera carrier and base board with individual motorized height adjustment. Two travel speeds, independent of load. Self-limiting worm gear: any height position is exactly held. Automatic end switch by magnet sensor. Anti-collision device. Cable remote control.

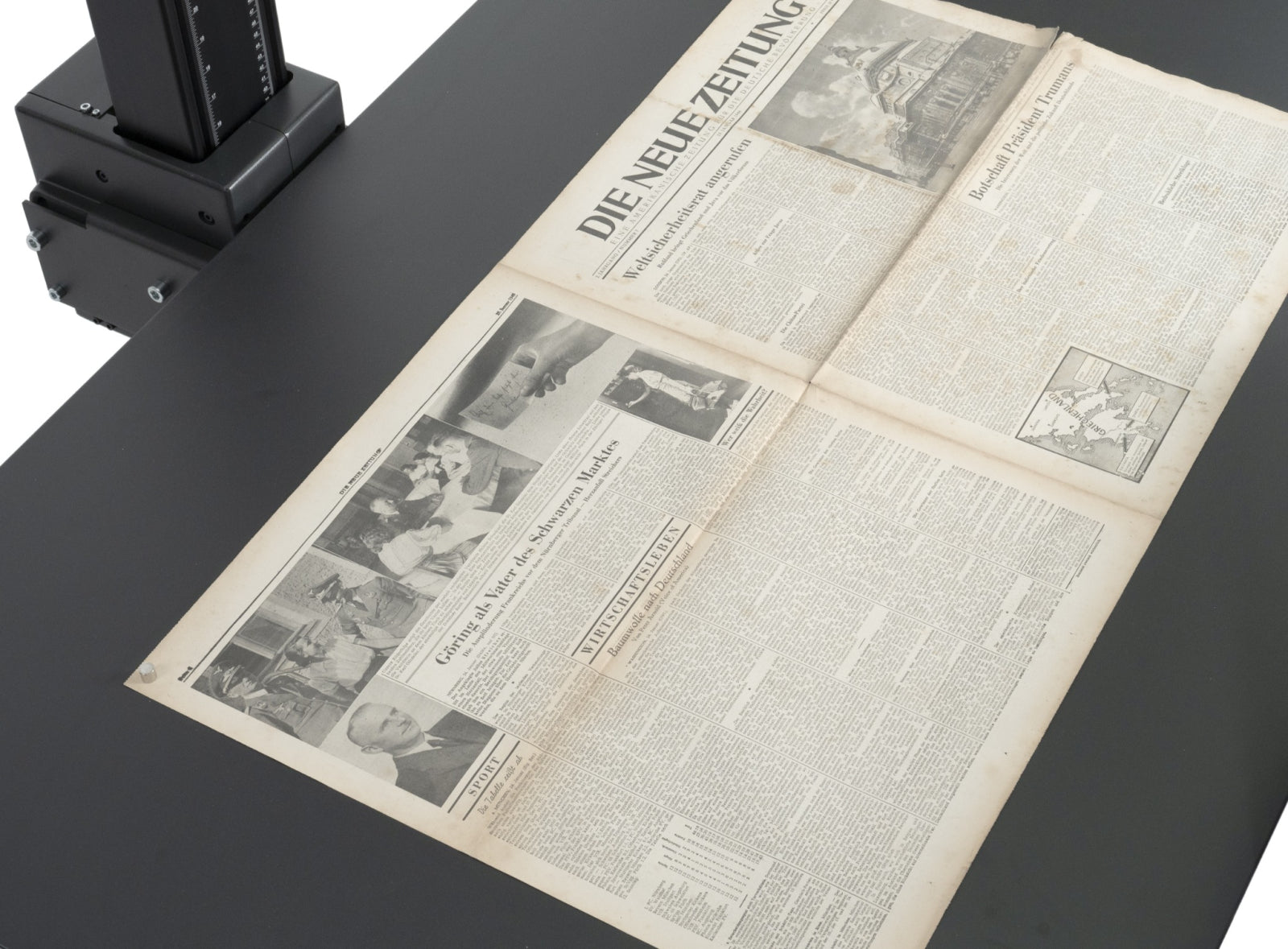

Detachable base board made of sheet steel with stabilizing substructure.

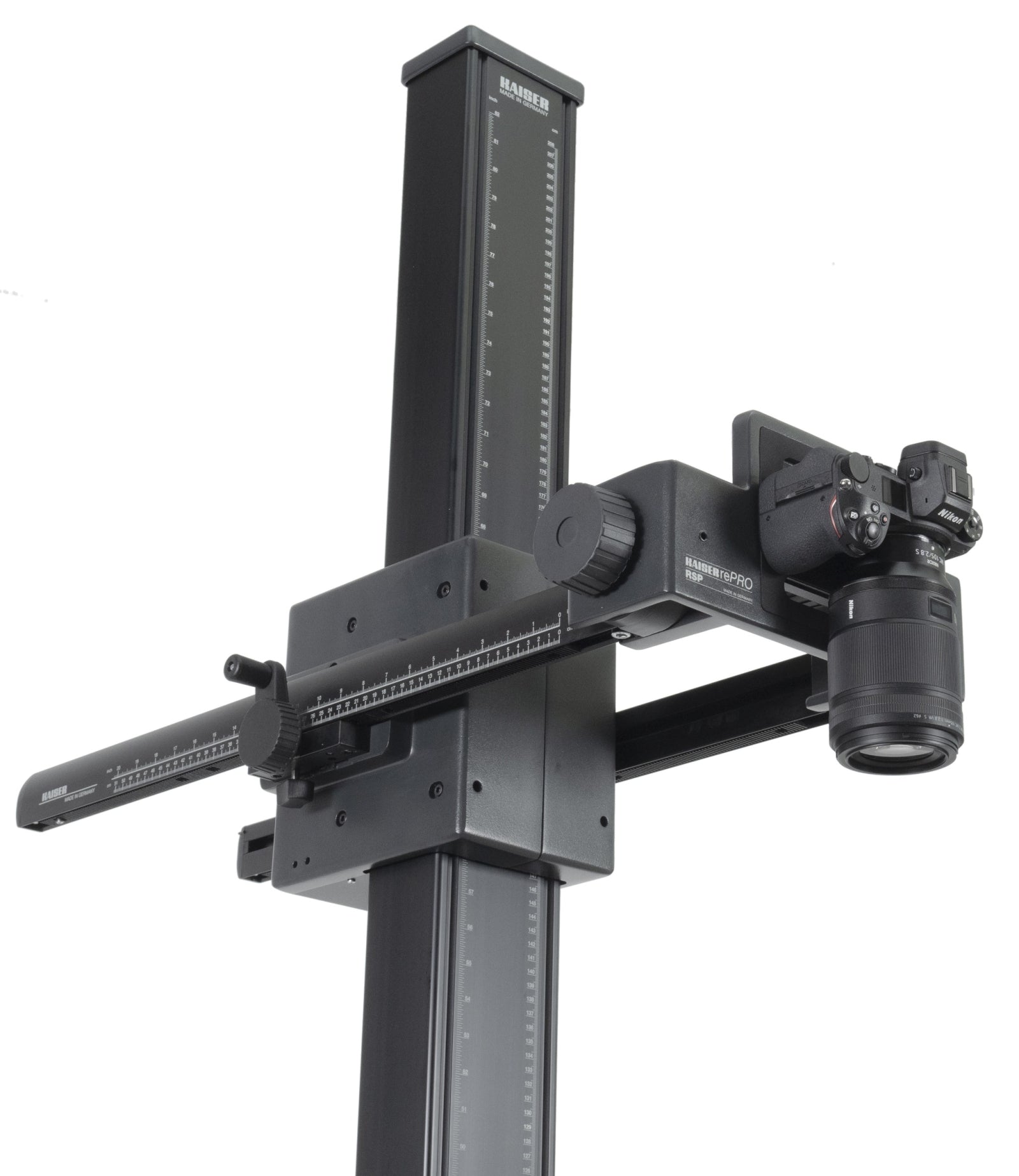

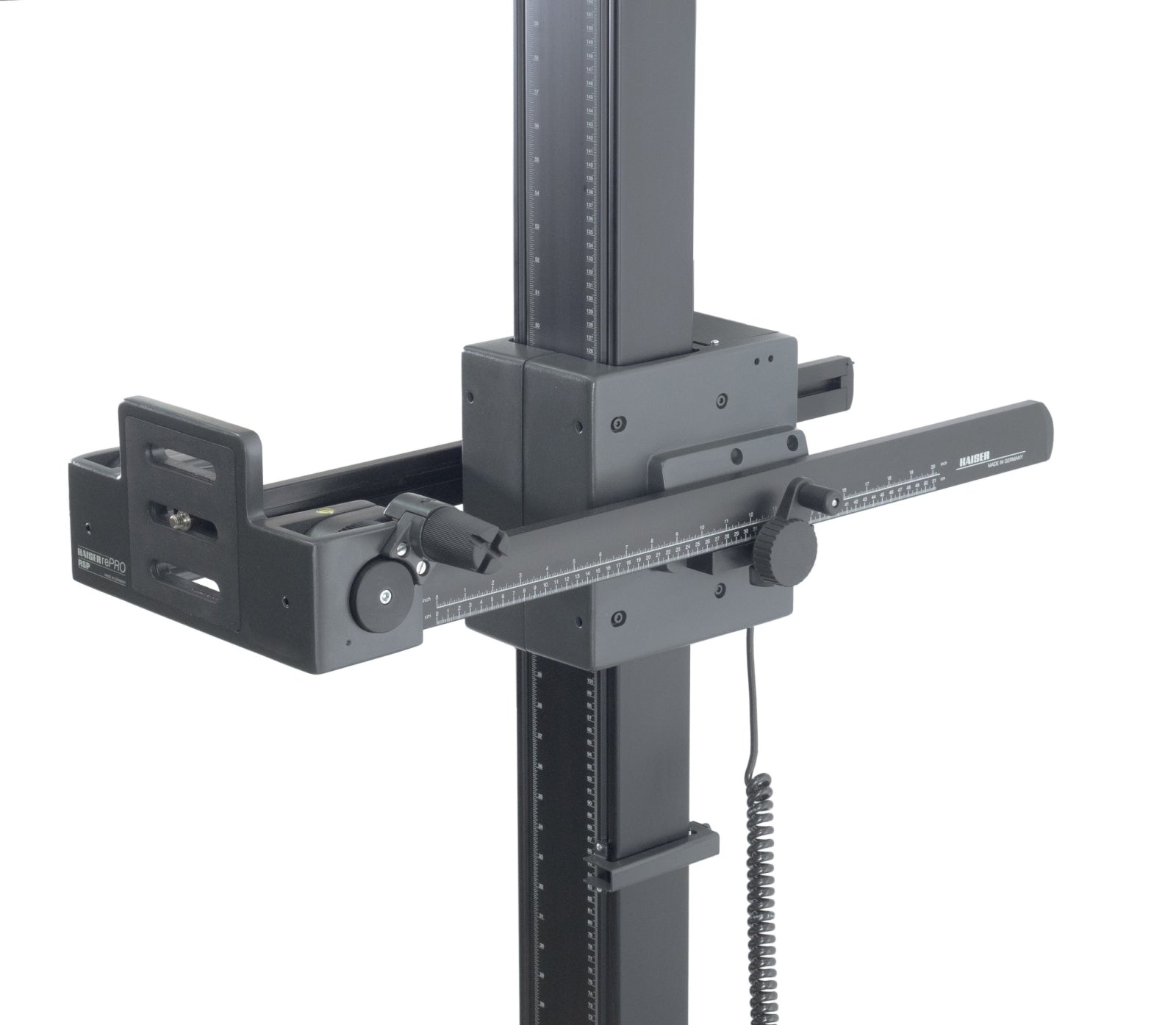

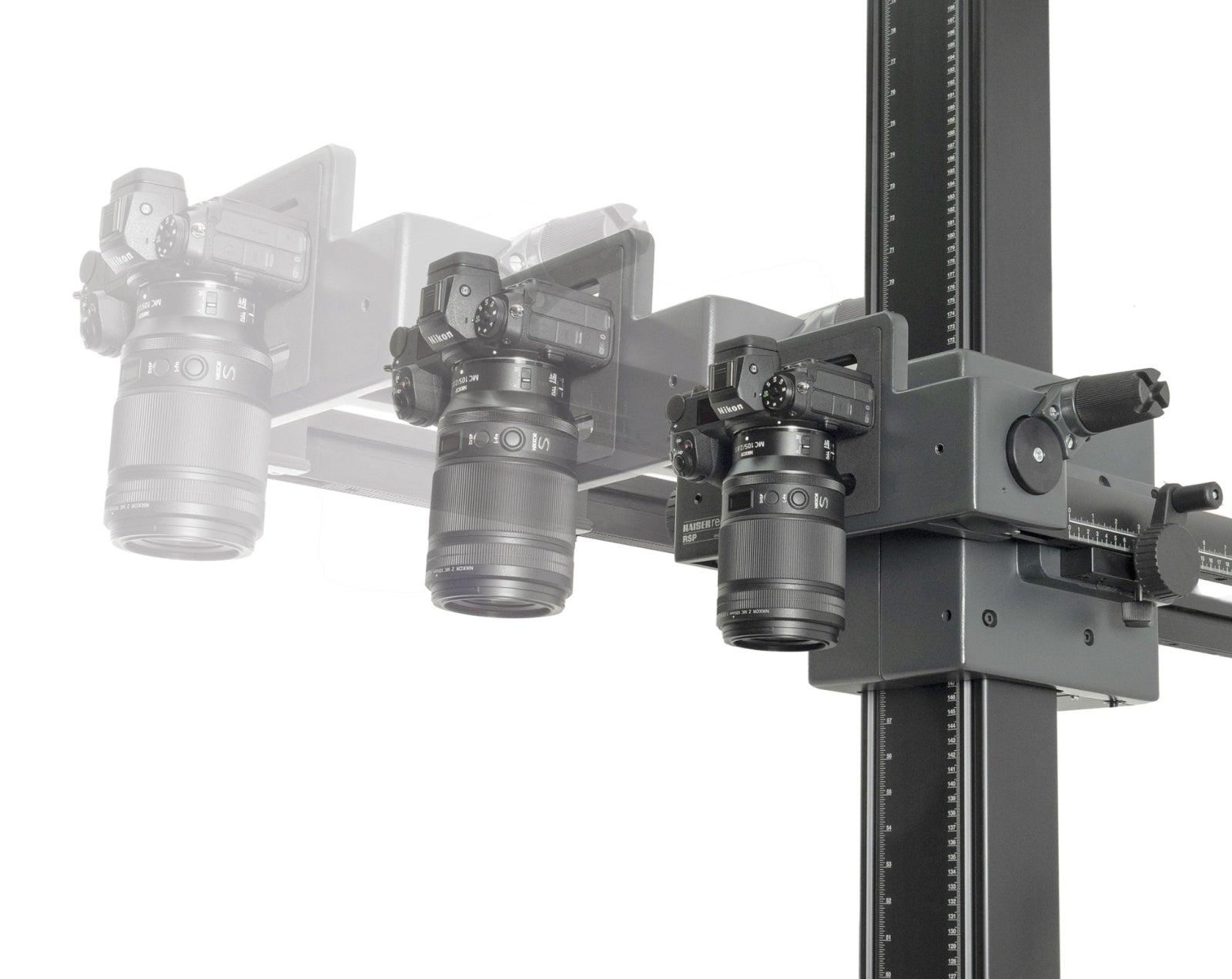

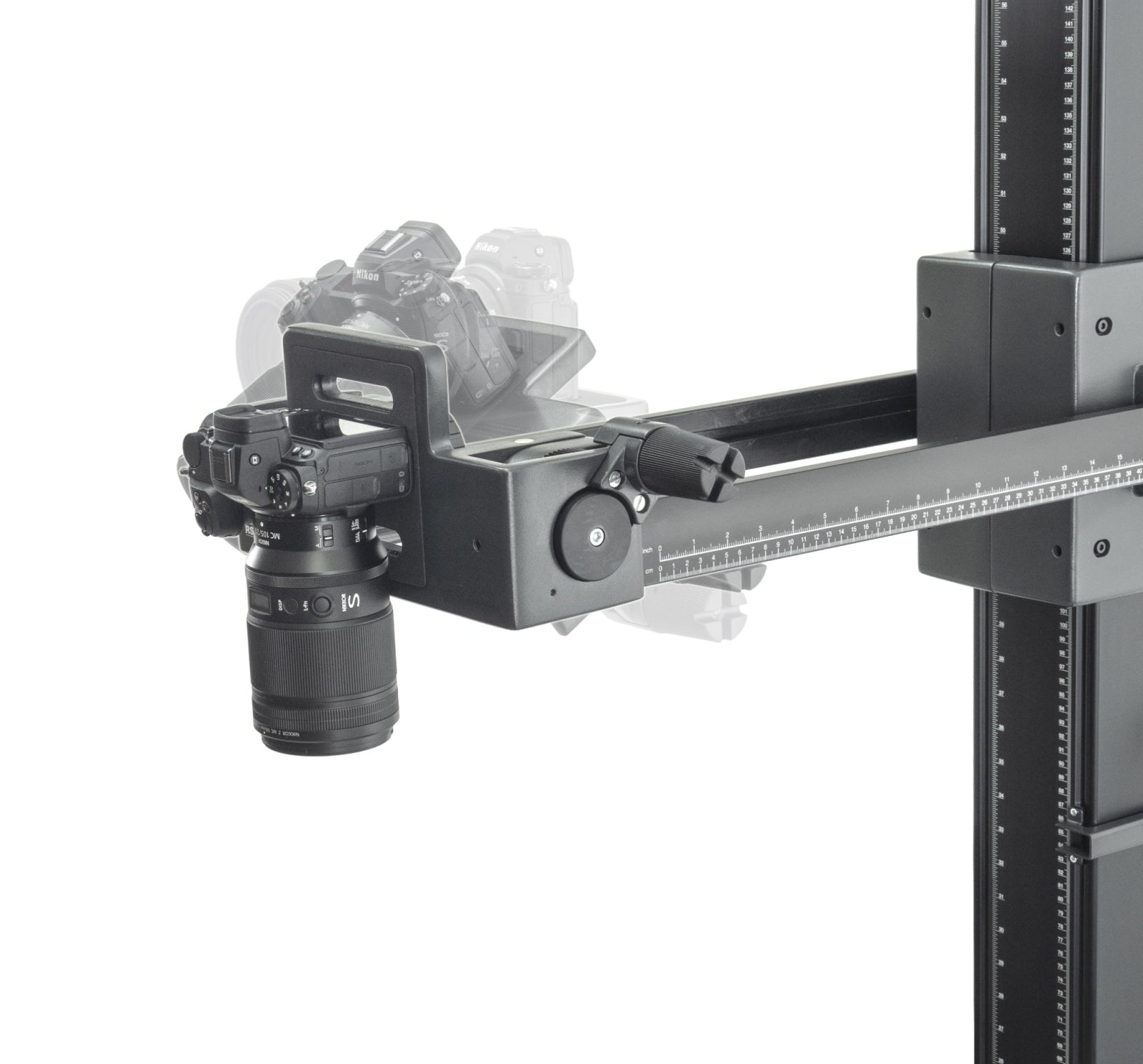

Camera carrier made of cast aluminium, horizontally adjustable via specially shaped parallel guides with gear rack and hand cranks for right-hand/left-hand operation. Two blocking screws. Camera mounting plate can be swivelled by +/- 90° with high-precision fine adjustment. Built-in spirit level.
Specifications
- Total height: 216 cm (85 in.)
- Column cross section: 12 x 8 cm (4.7 x 3.1 in.)
- Maximum load: on camera carrier: 10 kg (22 lbs.)
- Maximum load: on base board: 15 kg (33 lbs.)
- Base board: 129 x 89 cm (50.8 x 35 in.)
- Camera platform: 13 x 13 cm (5.1 x 5.1 in.)
- Connecting thread (interchangeable): 3/8" / 1/4"
- Made in Germany
- Instruction Manual
- Leaflet
Accessories
5614 - Wall Mount rePRO
5610 - rePRO Column Base
5627 - Close-up-Adapter
4421 - Adapter
5717 - Magnetic Subject Holders
5768 - Foot Pedal Shutter Release for Cameras
5648 - RB 100D LED Lighting Unit
5652 - RB 570 AX LED Lighting Unit
