LED reflected light illuminating unit for Copylizer (5215) and exe.cutive LED Illumina Base Plate (5244) with two light banks for even and soft illumination.

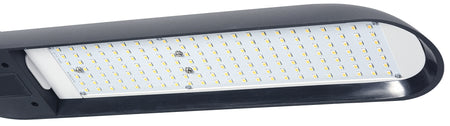

- Each light equipped with 161 selected white SMD LEDs.
- Emitted light has absolutely no IR and UV content.
- DC operation provides for flicker free light without residual ripple.

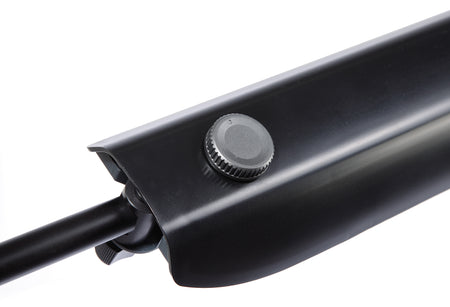

- Lights continuously dimmable, separately or in conjunction.

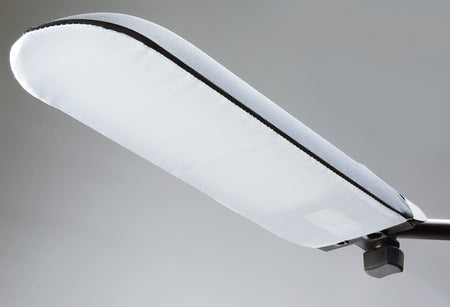

- Removable diffusing cover (5466).
- Lights can be tilted, swiveled and adjusted in height.
- Vertical lamp arms with height markings, tiltable with detents.
- Attaches to Copylizer/Illumina Base Plate with articulated joint bases.
- Comes with mains adapter.
![](https://www.kaiser-fototechnik.de/default-wAssets/img/sonstige/MadeInGermany_0416.jpg)
- LED array: 2 x 161 SMD LEDs
- Color temperature: approx. 6000 K
Color rendering index: CRI > 93
- Angle of radiation: 110°
- Max. illumination* w/o diffusing cover: 3000 lux
with diffusing cover: 2400 lux
*measured with highest possible evenness of illumination of a 16.5 x 11.5“ flat subject
- Power consumption: 2 x 27 W
- Operating voltage: 12 V
- Light emitting area of one light: 33 x 8.5 cm (13 x 3.3 in.)
- The RB 5270 DX Copylizer Lighting Unit can also be attached as a reflected light illuminating set to the "TopTable PRO" Basic Support (5921).
Accessories
5256 - Clamp Base 2 pieces
